Control Arm: Service and Repair

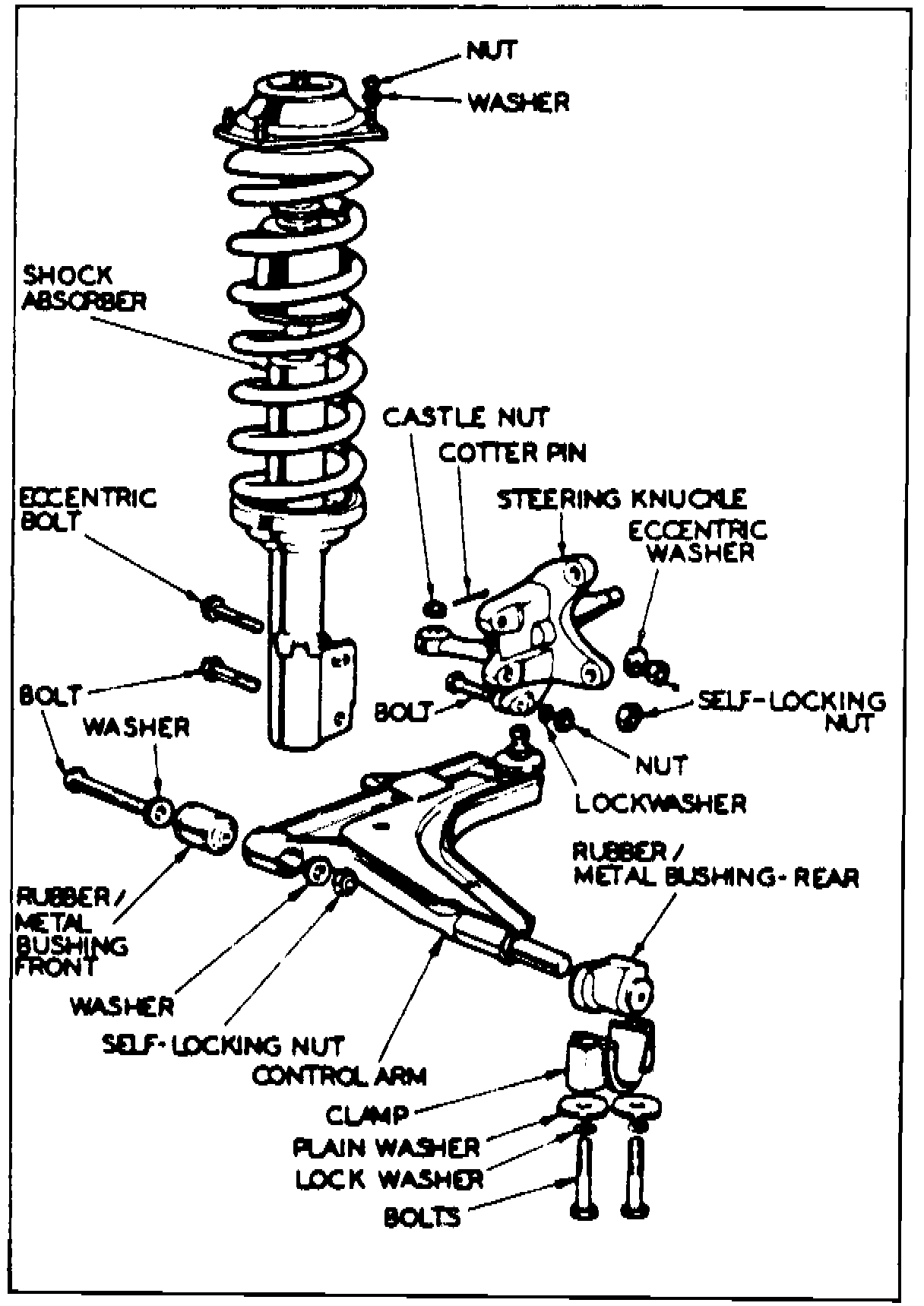

Fig. 4 Exploded View Of Front Suspension:

1. Raise and support vehicle.
2. Remove wheels and ball joint bolt, Fig. 4.
3. Remove two metal/rubber rear bushing bolts.
4. Remove bushing clamp and bushing.
5. Remove front metal/rubber bushing bolt.
6. Remove control arm.
7. Reverse procedure to install.
