Rear Springs, Stabilizer - Correct Part Replacement

November 10, 1992

Model
911 C2



Part Identifier
4290



Group
4



Number
9208



Subject:
Rear Springs and Stabilizer



ATTENTION:
Service Manager/Service Technician

Models Affected:
911 Carrera 2, model year 1992 and 1993
From 963 NS 420459 to 967 PS 420144
96X NS 440177 to 966 PS 440082
961 NS 460497 to 962 PS 460155



Concern:





A limited number of 1992 and 1993 911 Carrera 2 vehicles were produced with 93 a rear stabilizer bar which measures 21 mm in diameter and rear springs with orange color coding. It is very important that when repairing these vehicles, you must be sure that the same parts are installed on these vehicles as originally equipped.

Repair Information:
When performing any repairs to the rear suspension of any 1992 or 1993 911 Carrera 2 vehicle, always measure the rear stabilizer with a caliper and visually check the color coding of the rear springs. This will help assure the repair is done properly and will also help prevent reordering parts.

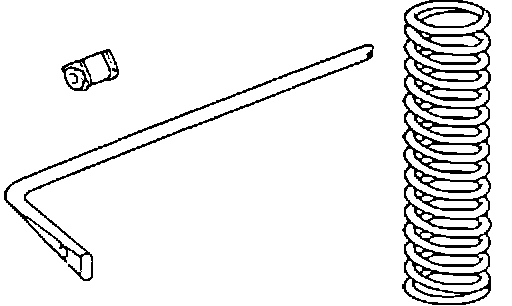

Parts Information:
Rear coil spring set Part Number 964 333 531 04 504
(orange)
Rear stabilizer bar Part Number 964 333 701 07
(21 mm dia.)
Rear stabilizer Part Number 477 411 313 D
(bushings 21 mm)

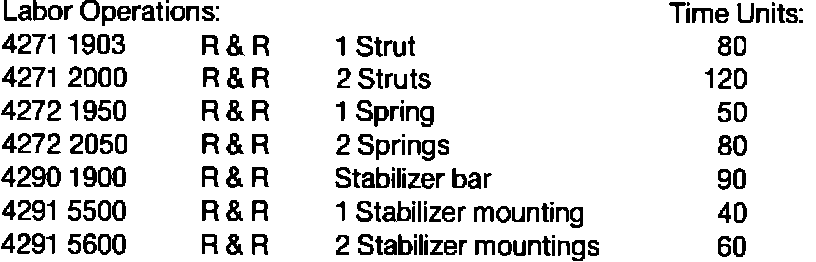

Warranty Information
