Disassembly/Assembly of Gear Housing

Disassembly/Assembly

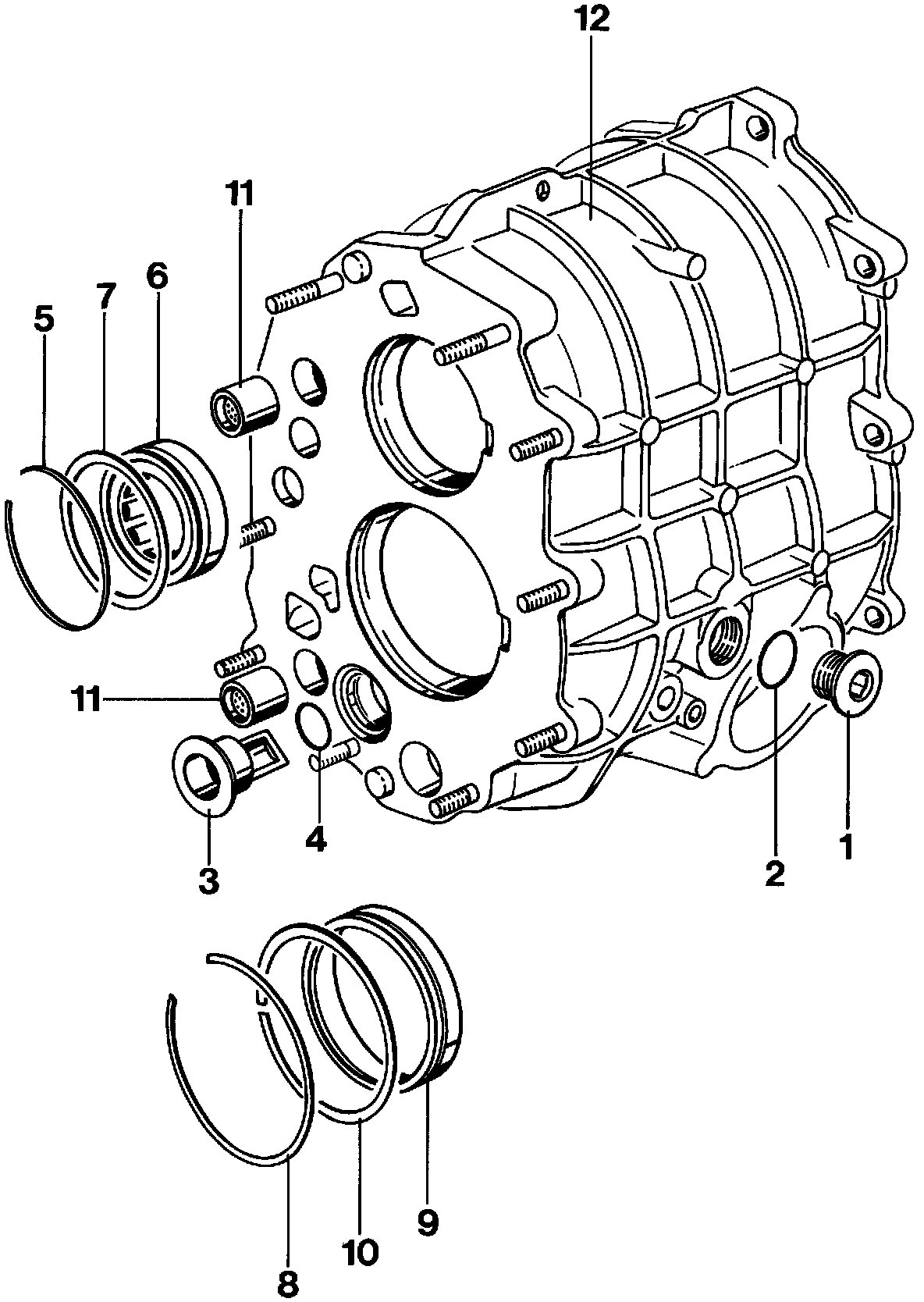

Gear Housing:

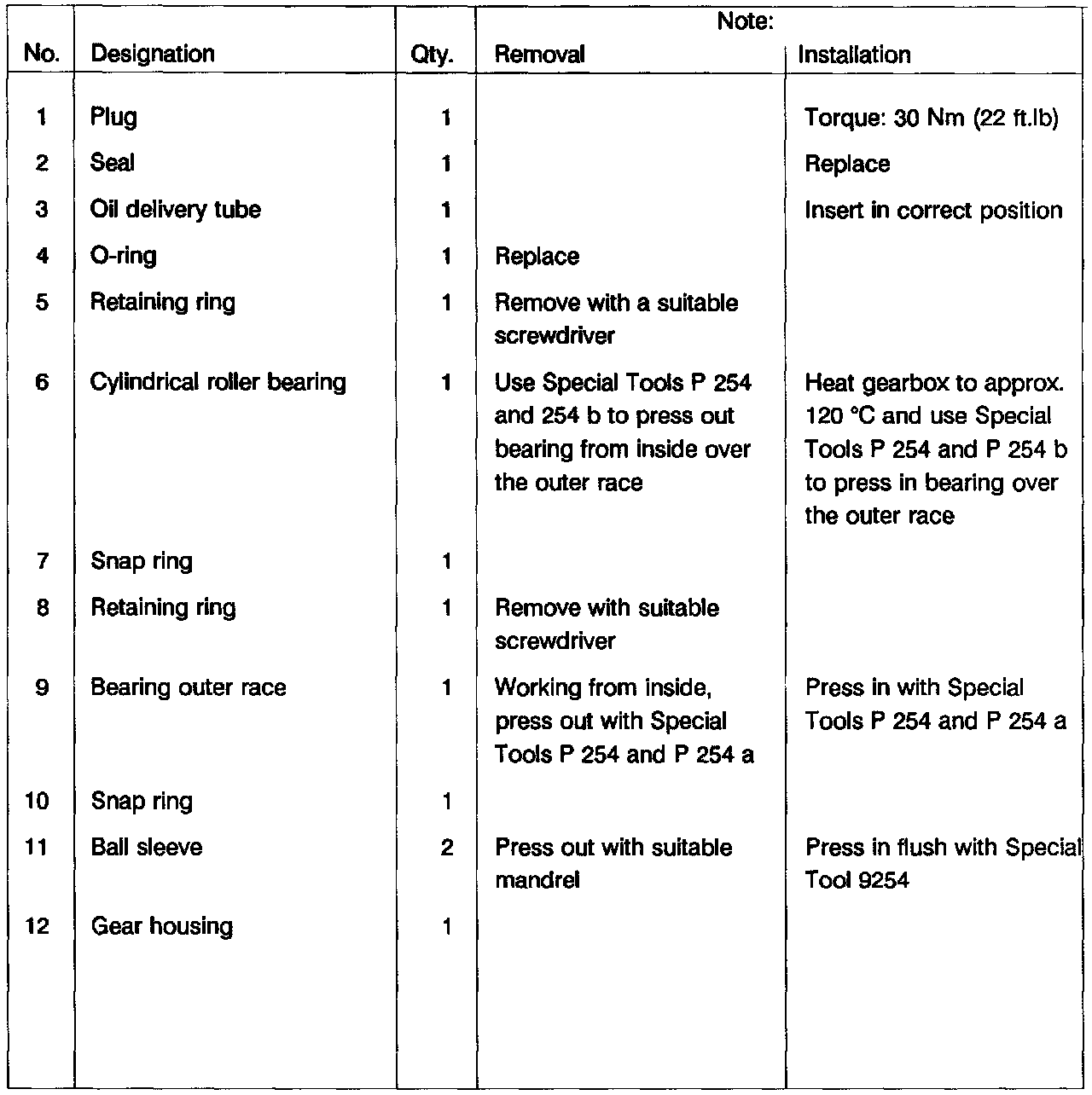

Legend:





- Refer to images for instructions and legends.
