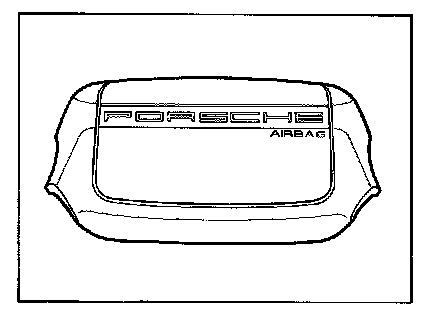

Removing & Installing Driver Side Airbag Unit

Removing and Installing Driver's Airbag Unit

1. Disconnect battery and cover pole or battery.

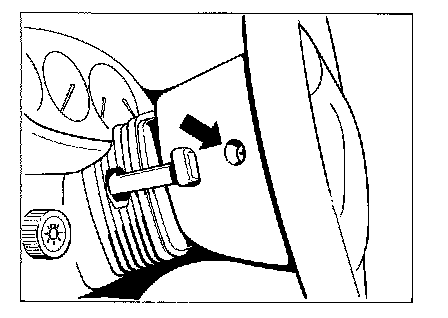

2. Unscrew two mounting screws with a Torx T 30 screwdriver socket.




Note Screws must be replaced each time they are loosened.

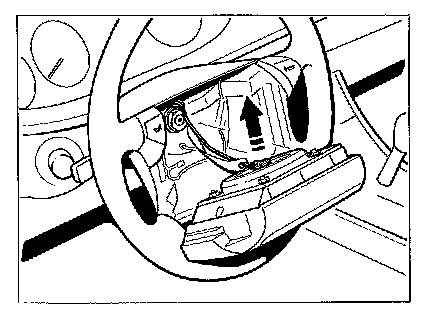

3. Disconnect plug.




Note
The airbag unit must always be laid aside in such a manner that the padded side faces up.

Airbag units must be placed under lock when removed for a long time. Conform with the safety precautions.

Tightening torque for mounting screws: 10 Nm (7 ft. lbs.).
