Campaign - Cruise Control Malfunction
Group1
Number
9202
Model
1992 968
Campaign Code
N02
April 30, 1992
Subject:
Rear Engine Compartment Cover Modification
This is to notify you of a voluntary Recall Campaign which involves 1992 Porsche 968 vehicles.
It has been determined that when the cruise control is activated, the safety clip for the cruise control cable on the servo motor arm can bind, due to insufficient clearance from the rear engine compartment cover.
If the cruise control cable binds, the engine will not return to idle when the cruise control function is disengaged, resulting in the vehicle speed not being reduced as expected.
A total of 854 cars fall within the scope of this recall. All potentially have the defect and will be recalled to have a bolt and washer installed on the cruise control servo motor. This modification provides the necessary clearance between the safety clip and engine cover.
The VIN ranges of the affected vehicles in this recall are:
WPOAA2968NS820066 to WPOAA296ONS820384
WPOCA2962NS840063 to WPOCA296ONS840644
Customer Notification

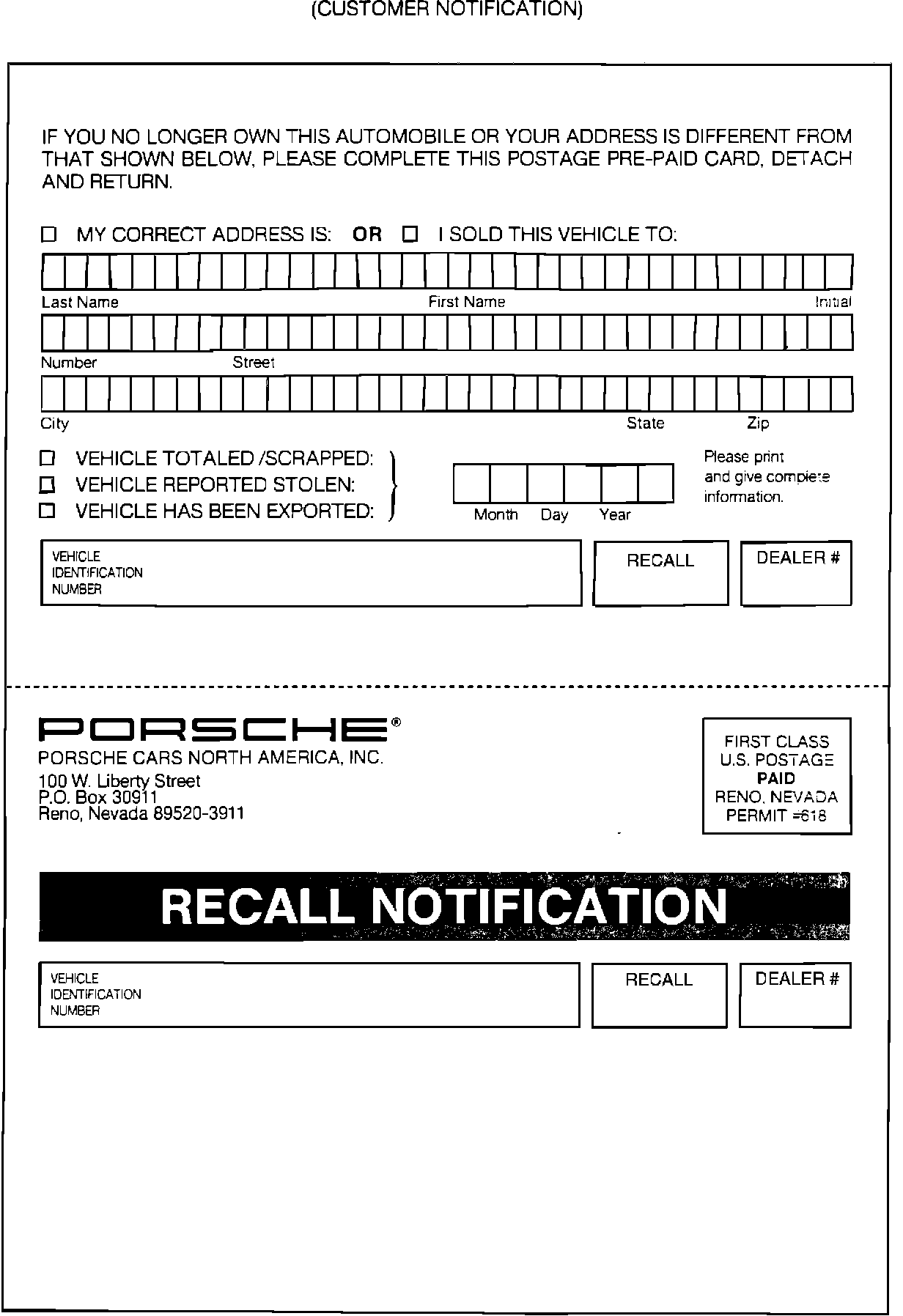

Porsche Cars North America, Inc. will notify all known owners of vehicles within the recall VIN ranges directly by first class mail during the week of May 18, 1992. See enclosed copy of the recall Notification Card to the consumers. A listing of all vehicles with owners' names and addresses in your area, within the recall VIN ranges, will be sent to you shortly.
If a vehicle within the recall VIN ranges is in your dealership for service/repair or in dealer inventory, the Recall Campaign should be performed without delay.
If the vehicle has been retailed or dealer traded, the dealer is to make the necessary arrangements to have the customer or receiving dealer contacted and the Recall Campaign performed.
Work Procedure
See bulletin.
Parts Required
Quantity Part Number Description
1 900 075 363 02 Bolt with crimped-on washer
1 N 011 524 7 Washer
Black paint
Time Allowance
20 TU
WORK PROCEDURE
Porsche 968 - Installation of M6x10 bolt and additional washer on cruise control servo motor
1. Open front hood.

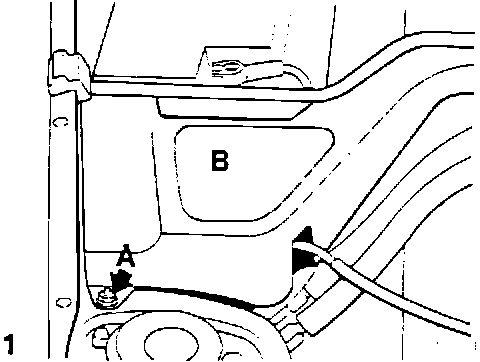

2. Remove the plastic nut (Figure 1, Arrow A) for the rear engine compartment cover.
3. Lift rear engine compartment cover, (B in Figure 1) and install a M6x10 bolt which has a crimped on washer (Part Number 900 075 363 02) and an additional washer (Part Number N 011 524 7) into the open thread hole on the cruise control servo motor and torque to 10 N-m or 7 ft.lbs. (Figure 2, Arrow C).
NOTE:
If a bolt with washer is already installed, go to step 4.

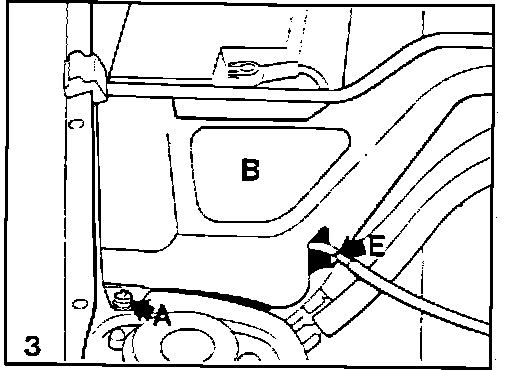

4. Install rear engine compartment cover back into position and secure with the plastic nut (Figure 3, Arrow A).
5. As identification for the completion of this recall campaign, put a black paint dot on the metal sleeve of the cruise control cable. (Figure 3, Arrow E)
Remove grease/oil from this metal sleeve prior to marking with paint dot.
6. Close front hood.
Required Parts
Quantity Part Number Description
1 900 075 363 02 Bolt with crimped-on washer
1 N 011 524 7 Washer
Black paint
Required Tools
- 10 mm socket
- Ratchet
- Torque wrench
ADMINISTRATIVE PROCEDURE
Recall N02
Rear Engine Compartment Cover Modification
Warranty Claims should be submitted via IDCS
Affected VINs: WPOAA2968NS820066 to WPOAA296ONS820384
WPOCA2962NS840063 to WPOCA296ONS840644
Warranty Code: R
Damage Code: AN06 99 N02 2*
Labor Operation: AN06 1900
Time Units: 20 TU
**Part Number(s): 900 075 363 02 (Qty. 1), bolt
N 011 524 7 (Qty. 1), washer
Warranty Parts $: 0.00 Item cost is below Warranty reimbursement level. Initial parts have been
shipped free of charge. (All Warranty Claims have a small parts allowance built into Warranty handling reimbursement.)
*Dealers on IDCS should use claim template option from IDCS.
**Note:
All part numbers must be claimed for Government compliance.

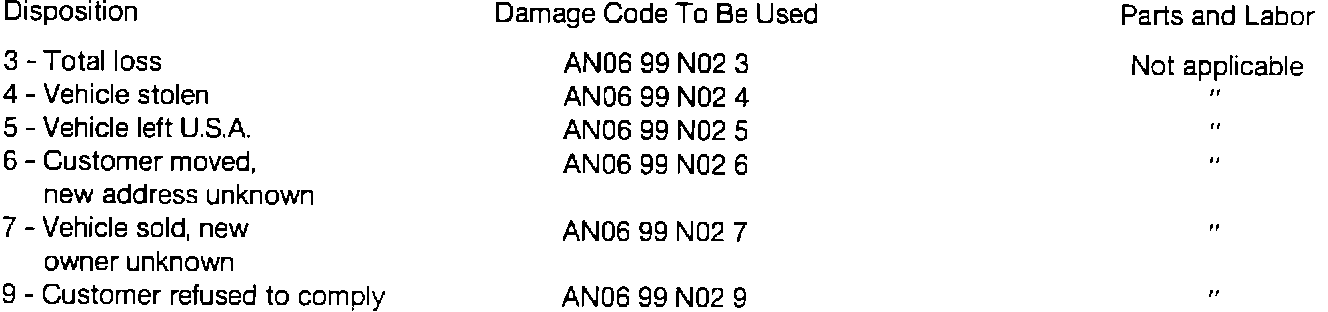

In cases where the Recall cannot be performed, submit the information on a claim via IDCS with the appropriate disposition code by inserting the code in the last digit of the damage code.
Owner Name and Address Chance
If owner name and/or address is shown incorrectly, submit correction using name/address change postcard from the Warranty and Maintenance Booklet or Recall mailing, or report to Porsche Cars N.A. via IDCS to the Warranty Department of change, including VIN.
