Work Procedure Service Action 092

1. Raise vehicle on a hoist.

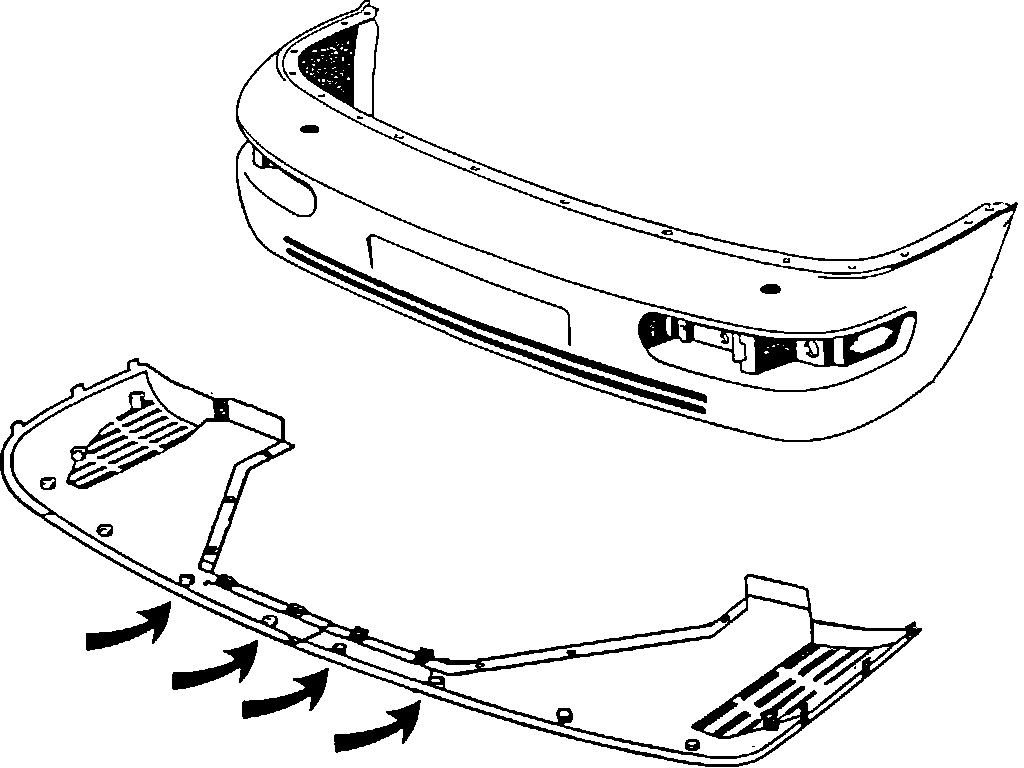

2. Remove the four front lower panel sheet metal screws as indicated in the illustration.


3. Install new screws, Part Number N 013 966 17, which are 13 mm long.


4. As identification for the completion of this Service Action, put a red paint dot on the four new screw heads.


5. Lower vehicle.

NOTE:
See tsb 39205, dated 6/25/92 for additional information.
