Tools - PSD Lock Measuring Cylinder Has Wrong Spring

90porsche09 Subject:
Special Tool 9514
Model

N/A

Part Identifier

N/A
Group

N/A

Number

9006



Porsche Special Tool 9514 received by Dealers in May of 1990 is equipped with an incorrect spring. A new spring (free of charge) is attached to this bulletin. Install the new spring in Special Tool 9514 by removing the threaded collar. Install the new spring and reinstall the collar. The incorrect spring must be scrapped immediately to avoid accidental re-installation.

Differences between the new spring and the old spring are as follows:

Old Version New Version

Coil sphng wire diameter 1.7 mm 1.6 mm
Number of coils 7.5 8.75

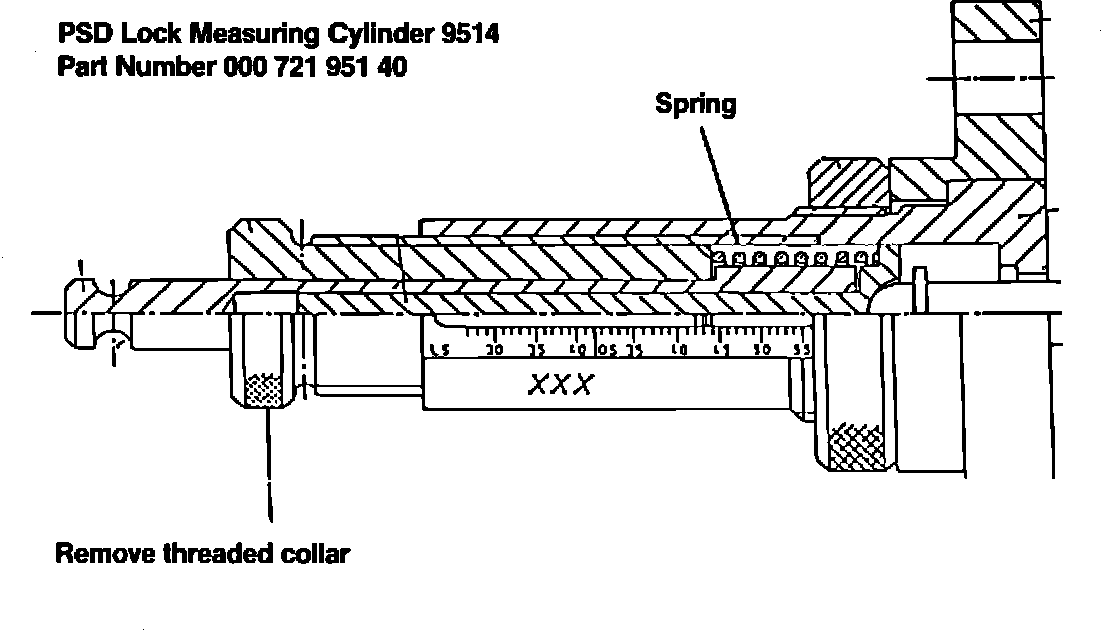

Pictured below is a diagram of Special Tool 9514 and the location of the spring.
