Deceleration Valve: Description and Operation

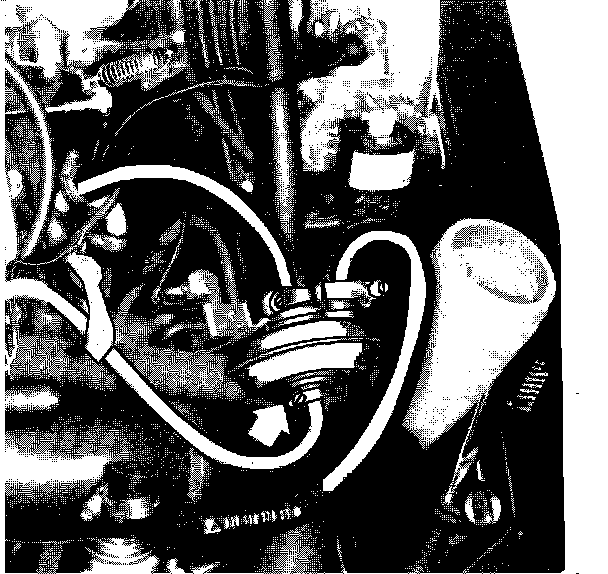

Fig. 31 Deceleration Valve:

During deceleration, the engine must be kept from running on an excessively rich air/fuel mixture. The deceleration valve is used to maintain the correct air/fuel ratio during deceleration or abrupt closing of the throttle valve.
This is done by adding fresh air to the intake manifold. The adding of air leans out the rich air/fuel mixture existing during deceleration.
A hose routed from the intercooler to the deceleration valve and from there to the intake manifold lets the fresh air bypass the closed throttle valve, Fig. 31. The deceleration valve (controlled by vacuum from the throttle housing) regulates the amount of fresh air that bypasses the throttle valve.

Fig. 32 Deceleration Valve:

COMPONENT:

DECELERATION VALVE
The deceleration valve consists of an air inlet, air outlet and a vacuum connection, Fig. 32. Inside it houses a spring loaded diaphragm.
In resting position (engine off or at idle), the diaphragm (under spring tension) blocks off the air inlet and outlet ports. During normal or high engine loads, the diaphragm retracts from the air in/outlet ports by the vacuum (taken from the throttle body) applied on the other side of the diaphragm. This opens the inlet and outlet ports and fresh air can now pass through the valve into the intake manifold. As soon as the throttle valve closes, the vacuum acting on the diaphragm gradually collapses and closes the air inlet and outlet ports. This action causes the high engine RPM to return slowly to idle speed.
