Brake Pads - Proper Application of New Material Pads
90porsche06 October 9, 1990Subject: Pagid Brake Pads
Model Group
944 S2 4
Part Identifier Number
4636/4638 9010
ATTENTION: Service Manager/Service Technician
Models Affected: 944 S2, M. Y. 1989- Except M 030 (Sport Chassis) Option
Concern: Proper application of new material brake pads.
Vehicle Information: Changed in production as of October 1989 from VIN 94 LN 45 0169 Coupe 94 LN 48 0611 Cabrio

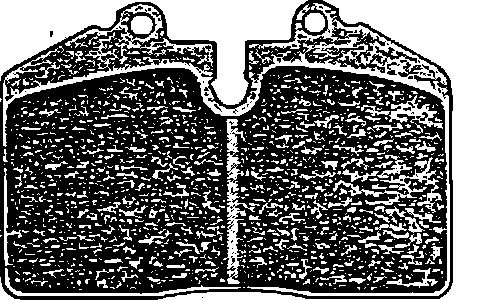

Parts Information: The new Pagid brake pads PN 951 351 939 05 are coded with 2 orange paint stripes. The former brake pads (still available) PN 951 351 939 04 are coded with white paint.
Service Information: 1. These brake pads must NOT be mixed on a car. All pads must be the same - check color coding.
2. These brake pads MUST be used with the appropriate dampers.
3. This information does NOT apply to cars with the M 030 (Sport Chassis) option.
