Removal

- Move seat back and steering wheel up to make procedures easier. Remove tray if applicable.

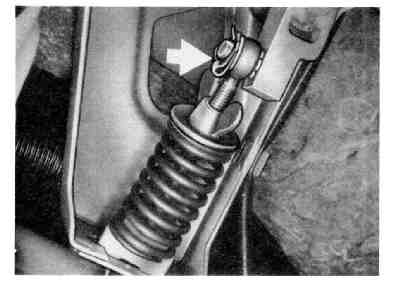

- Remove shaft for clutch push rod.

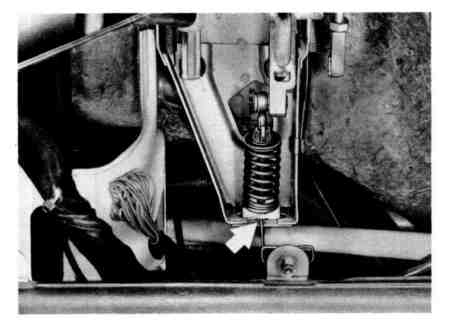

- The guide rod for clutch power spring has an assembly bore. Operate clutch pedal enough (press down) until bore has cleared the bearing. Insert 3 mm diameter wire through bore in this position.





- Remove complete clutch power spring/guide rod. This requires removing the retainer, pressing guide rod off of clutch pedal and taking out of console.
- Release clutch power spring by turning winged nut as far as possible.
- Remove piece of wire and take parts off of guide rod.
