Installation

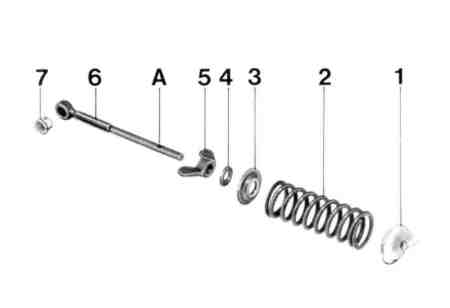

A Assembly bore
1 Bearing
2 Clutch power spring
3 Spring retainer
4 Washer
5 Winged nut
6 Guide rod
7 Bearing sleeve

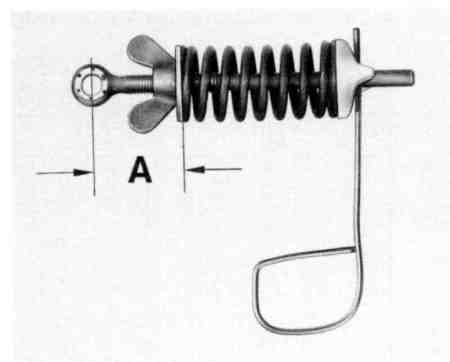

- Adjust clutch power spring. Distance A between inside of spring retainer and center of bearing shaft should be 43 mm. If necessary, correct by turning the winged nut.
- Install adjusted complete part in car and mount on clutch pedal.
- Take piece of wire out of guide rod and adjust clutch pedal to final position.
- Mount clutch push rod on pedal. Check push rod adjustment and correct if required.
