Linkage Versions

Modifications have been made to the clutch linkages since the beginning of production.

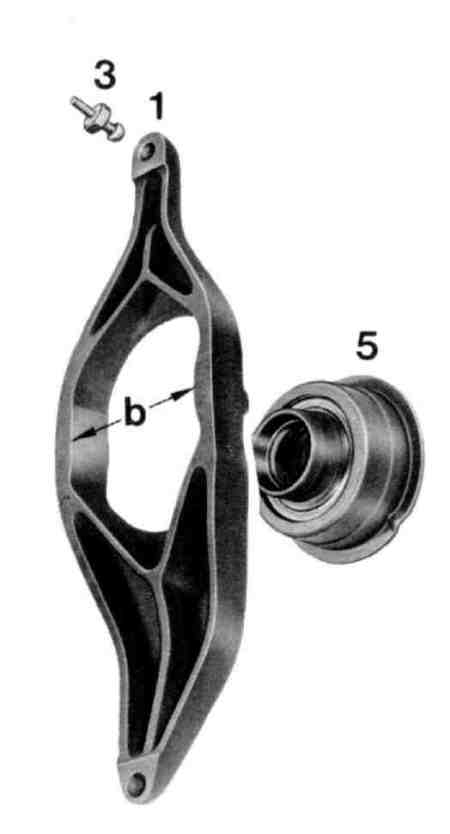

Original Version
1 Release lever: b = small width
3 Ball stud: 10 mm diameter
5 Release bearing: Without turning lock

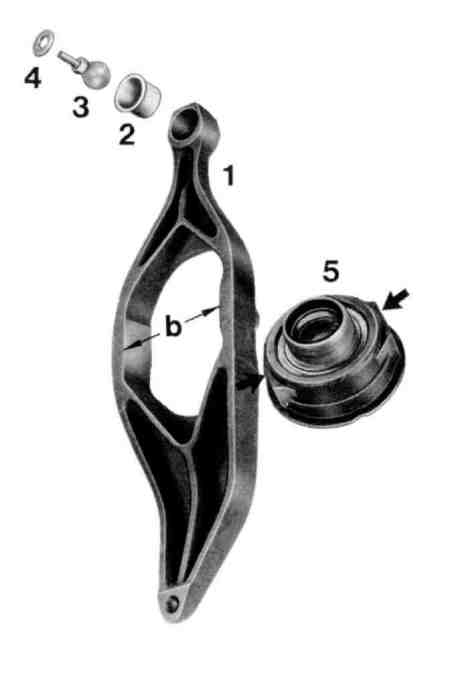

Modified/Present Version
1 Release lever: b = large width
2 Bushing: Replacement available
3 Ball stud: 19 mm diameter
4 Washer: Replacement available
5 Release bearing: With vulcanized rubber pads as turning locks (won't fit in release lever of original version)
