Windshield - Revised Mounting Spacer
88porsche01Subject: Windshield Mounting
Model
944, 944S, 944 Turbo
Group
6
Part Identifier
6414
Number
8802
March 25, 1988

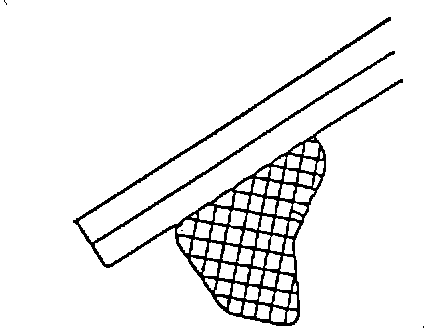

FIGURE 1:
FIGURE 2:
Windshields with pre-applied cement profiles (Fig. 1), previously installed only in cars with airbags and/or Sekuriflex windshields are now installed in non-airbag 944 models as well. (Refer to Technical Bulletin, Group 6, Number 8702, Book D, Page 201.) Also, the distance edge of the spacer (Fig. 2) at the base of the windshield has been omitted.
From VIN 94 JN 47 1911 - 944 94 JN 46 5399 - 944S 94 JN 15 0978 - 944 Turbo
New Type Spacer PN 944 559 031 02
The new spacer block can only be installed in earlier cars which were produced with windshields with pre-applied cement profiles.
Old version spacers PN 944 559 031 01 are still available for repairs to earlier vehicles.
FIGURE 1:
IMPORTANT
When removing windshields which have preapplied cement profiles, (Fig. 1), the profile which determines the distance and location of the windshield will be destroyed. For this reason the windshield cannot be reused and must be replaced.
