Poly Rib Pulley Bolts & Washers - Revised
88porsche01Subject: Poly Rib Pulley Bolts Changed
Model
924S, 944, 944S, 944T
Group
1
Part Identifier
1380
Number
8801
March 11, 1988

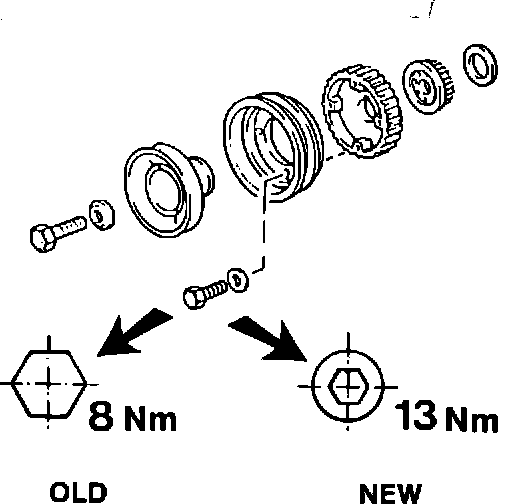

The bolts and washers mounting the poly rib pulley to the crank shaft drive gear for the balance shafts have been changed.
The new bolts are 9 mm longer, M6 x 25, and are of allen head design. The bolt torque is increased to 13 N-m. (9.5 ft.lbs.)
New bolt Part Number 900 067 279 08 New washer Part Number 900 031 011 02
New type bolts are installed in production from the following engine numbers:
43 H 11261-924S, 944 Manual trans. 43 H 62894-924S, 944 Auto trans. 42 H 05462-944S 45 H 03874-944 Turbo
IMPORTANT
Because the new bolts are longer, the drive gear bolt holes are drilled and tapped completely through. This means the new type bolts cannot be installed in old style drive gears.
Former version hex bolts, M6 x 16 with a torque of 8 N-m (6 ft.lbs.), are still available for repairs to earlier vehicles.
