Oil Pump/Crankcase Sealing Surface - Alignment
88porsche06Subject: Oil Pump/Crankcase Sealing
Surface Alignment
Modal
924S, 944, 944S 944 Turbo/S
Group
1
Part Identifier
1010
Number
8819
September 30,1988

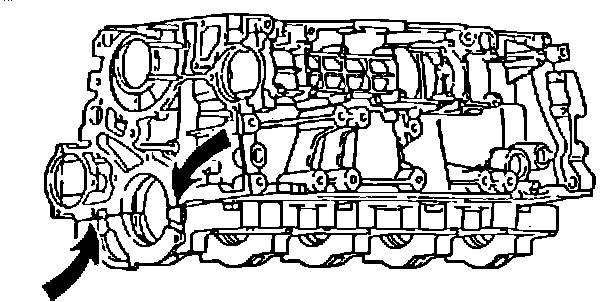

When assembling the upper and lower crankcase sections, be certain to properly align the surfaces (arrows) where the oil pump seals to the crankcase.
Proceed as follows:
Tighten the M12 nuts of the lower crankcase half to 10 N-m (7.2 ft. lbs.). Use a straight edge to check the alignment of the oil pump sealing surface. If adjustment is required, use a plastic hammer and carefully tap the lower crankcase section in the direction needed to obtain perfect alignment.
Tighten the M12 nuts in the following sequence:
1st step 20 N-m (14 ft. lbs.) 2nd step 50 N-m (36 ft. lbs.) 3rd step 90 N-m (65 ft. lbs.)
Re-check the oil pump sealing surface alignment. Tighten the remaining bolts and nuts to:
M10 - 1st step 20 N-m (14 ft. lbs.) 2nd step 50 N-m (36 ft. lbs.) M8 - 20 N-m (14 ft. lbs.) M6 - 10 N-m (7.2 ft. lbs.)
