Clutch Disc - Measuring the Lining Thickness

88porsche01

Subject:
Measuring Clutch Lining Thickness
Model

924S, 944, 944S, 944 Turbo
Group

3
Part Identifier

3056
Number

8804
March 25, 1988
ATTENTION: This bulletin replaces bulletin Group 3, #8804, dated 3-11-88.

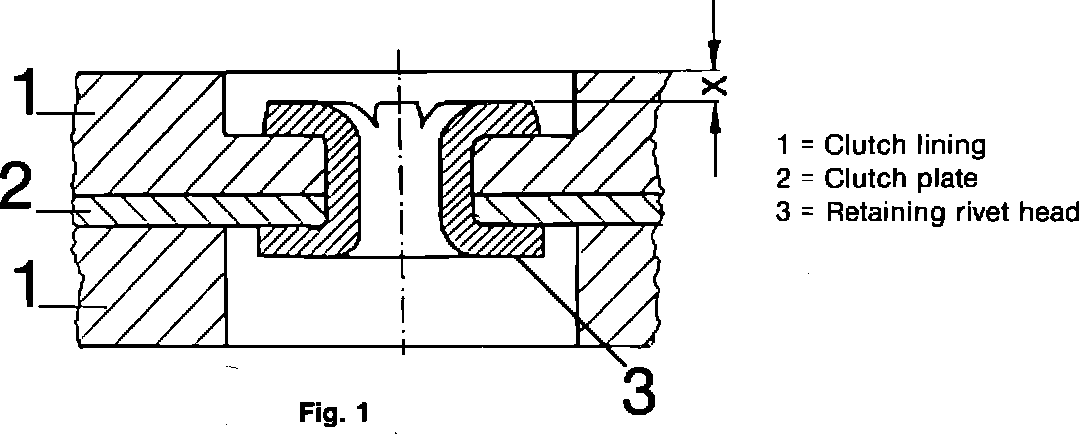

FIGURE 1:

When measuring the clutch disc lining thickness, proceed as follows:

Determine distance "X" (see sketch)
Measure from the clutch lining material (Fig. 1) to the retaining rivet. Be sure to measure only opposite the rivet head.

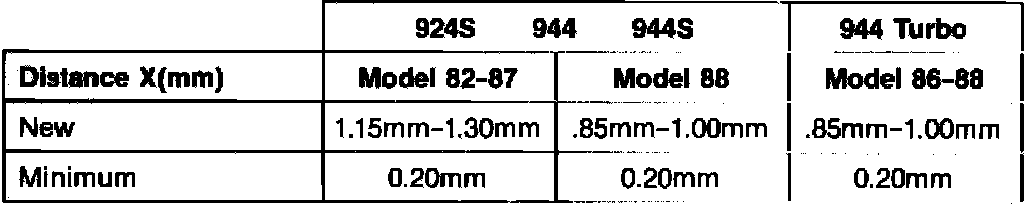

Specifications:
The clutch disc should only be replaced when the lining thickness (Distance X) falls below 0.20 mm.
