Tools - Tester 9268 Cable Connection Precautions
88porsche01Subject: Tester 9268 Cable Connection
Model
944S, 928 S4
Group
2
Part Identifier
2470
Number
8804
June 3, 1988

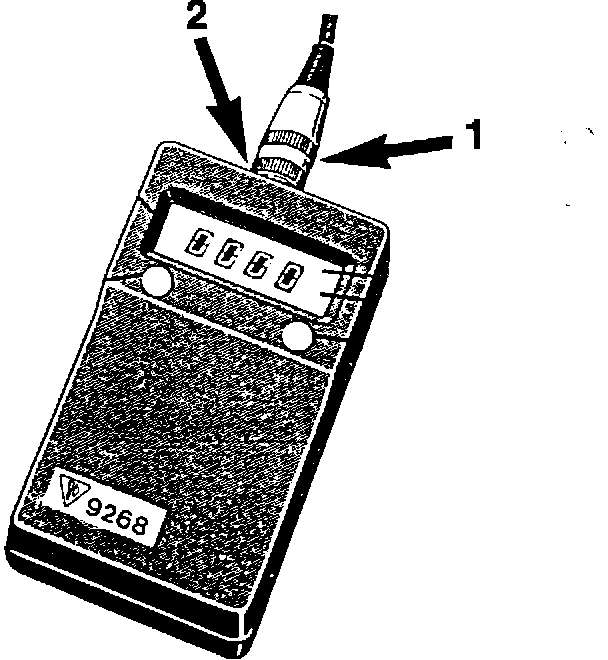

Do not overtighten the coupling nut (arrow 1) when screwing the connection lead onto tester 9268. Contact is assured even when the coupling nut is not fully tightened. Overtightening will cause the connection socket to turn in the tester housing and may result in broken wires. If loose, apply several drops of quick drying cement between the tester housing and socket (arrow 2) to prevent the socket from turning.
