Valve Guide Seal: Service and Repair

Removing and installing the valve stem seal

(Cylinder head removed)

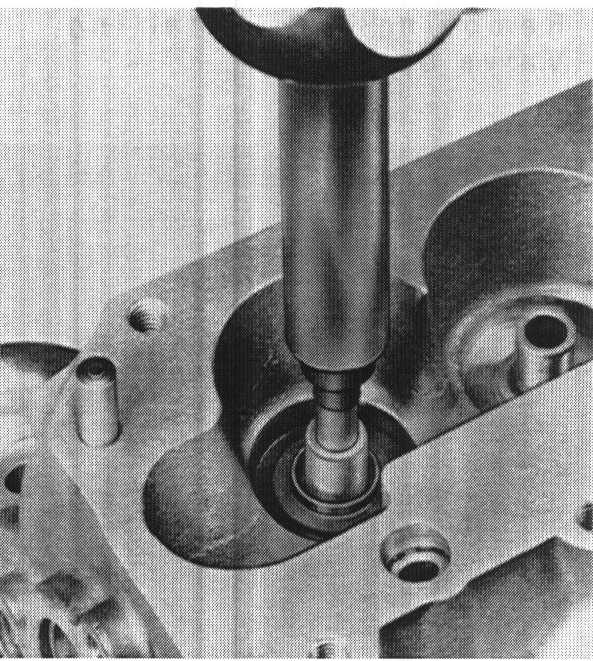

Pull off valve steam seals with Special Tool 3047

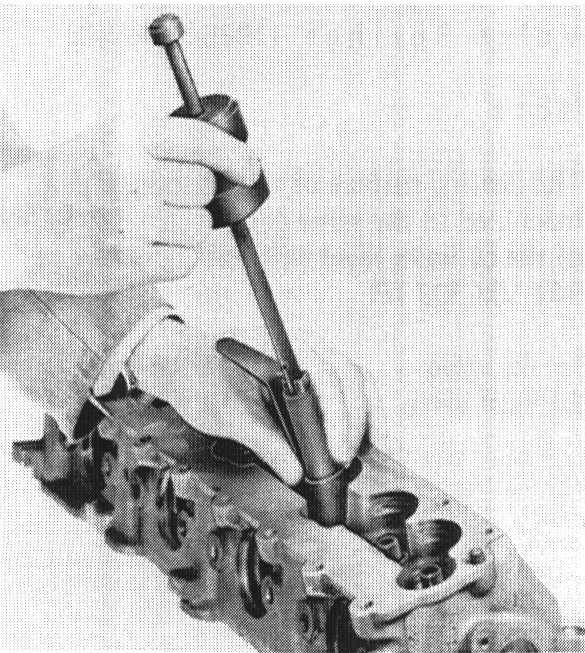

1. Slide the plastic assembly sleeve, e.g. from the spare parts valve stem seal kit for Type 924, onto the valve stem.

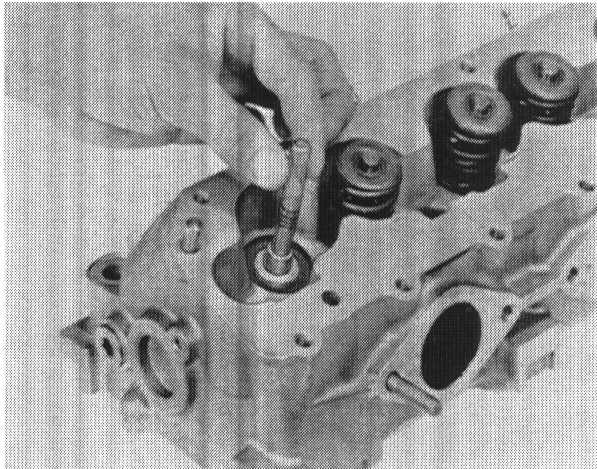

2. Lubricate valve stem seal with oil and slide on to the valve guide carefully using the pressure pad.
