Thermostat: Testing and Inspection

CHECKING THERMOSTAT





Place thermostat in a water bath.

Begins to open = approx. 83° ± 2°C (181° ± 3.5°F)
Fully open = approx. 90°C (194°F)

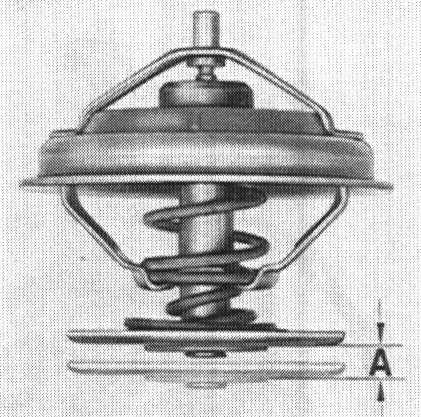

Opening travel (distance A) = at least 7 mm
