Micro Switches - Adjusting Measurement

88porsche10

Subject: Service Information Video Tape

"Electrically Operated Cabriolet Top"
Model

911 Cabriolet
Group

6
Part Identifier

6101
Number

8808
December 9, 1988

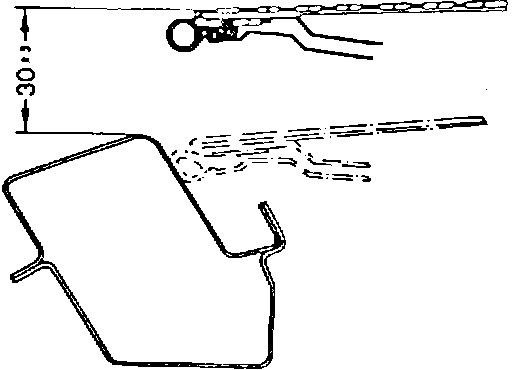

FIGURE 1:

The adjusting measurement for the front micro switches given in video tape "Electrically Operated Cabriolet Top" (WKD 457 420 12) is incorrect.

The micro switches are adjusted correctly if both switches switch at 30 +/- 3 mm distance "upper roof edge to upper windshield frame edge" (Figure 1).

For complete Cabriolet top adjustment procedures, refer to 911 Carrera Workshop Manual, Volume IV, page 61-48 or Technical Bulletin, Group 6, Number 8708, Book D, page 221.
