Outside Door Handle Pivot Lever - Available Parts

87porsche05

Subject: Outside Door Handle

Pivot Lever
Model

924S, 944, 944S, 944T
Group

5
Part Identifier

5711
Number

8704
October 26, 1987



If the pivot lever of the outer door handle breaks, complete handle replacement is no longer necessary. The following parts are available for repair.

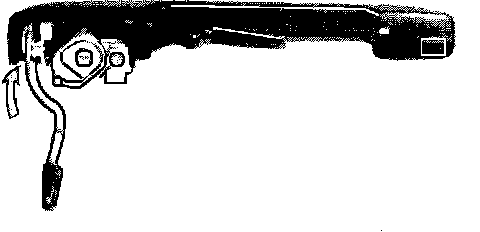

Operating Rod
with pivot lever and R.S. - Part # 944 537 262 00
ball socket (arrow) L.S. - Part # 944 537 261 00

Roll pin - Part # N 023 323 2

After installing new parts, lubricate the operating mechanism with door lock grease Part Number 999 917 751 00.

Note: Avoid using excessive amounts of grease on door handle assembly.
