Fuel Distribution Pipe Spacer - Reinstall During Service
87porsche02Subject: Fuel Distribution Pipe Spacer
Model
924S - 944
Group
2
Part Identifier
2430
Number
8712
August 12, 1987

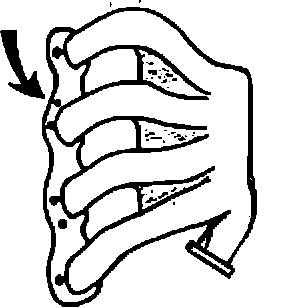

For Model Year 1987, engines have a 1 mm spacer installed between the fuel distribution pipe and the intake manifold at the rear mounting point only. (Arrow)
The following engine number ranges have the spacer installed.
43 H 04426 04826 M44/07 Manual transm. 43 H 61057 61148 M44/08 Auto transm.
During repair work, this spacer must be reinstalled, otherwise it will not be possible to mount the fuel injector holding clip.
