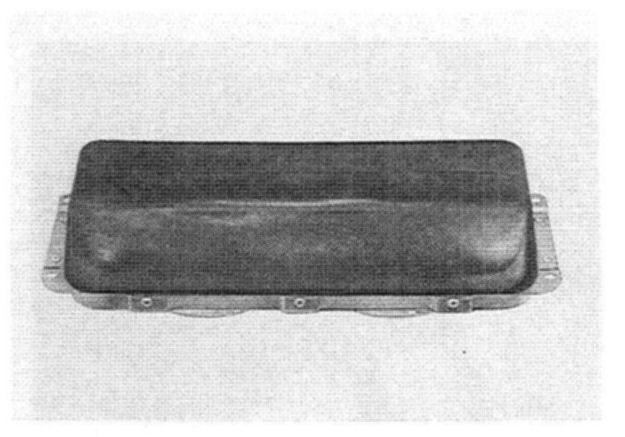

Removing & Installing Front Passenger Airbag Unit

1. Disconnect battery and cover over pole/battery.
2. Remove glove box.

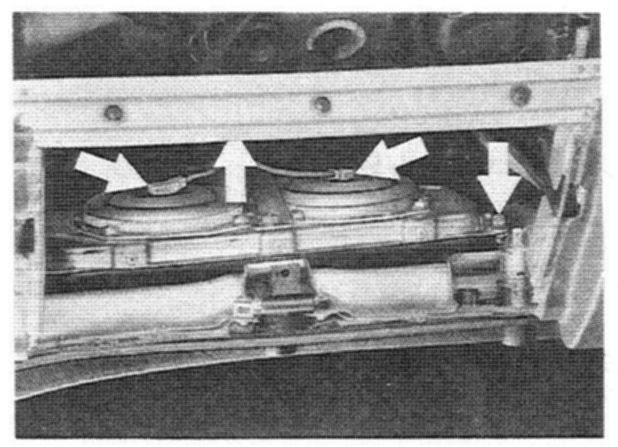

3. Remove air-guide hose.



4. Disconnect plug connectors from the unit.
5. Loosen fastening screws (hexagon socket head 5 mm, 4 pieces).
6. Loosen fastening screw M 8.

Note
- The hexagon-socket-head cap screws are micro-encapsulated. Use new screws when installing.

- The M 8 nut is self-locking. Use new nut when installing.



- The airbag unit must always be put down such that the airbag is pointing upward.
