Removing & Installing Airbag Steering Wheel

Removal

1. Disconnect battery and cover over pole/battery.
2. Remove driver airbag unit. Service and Repair

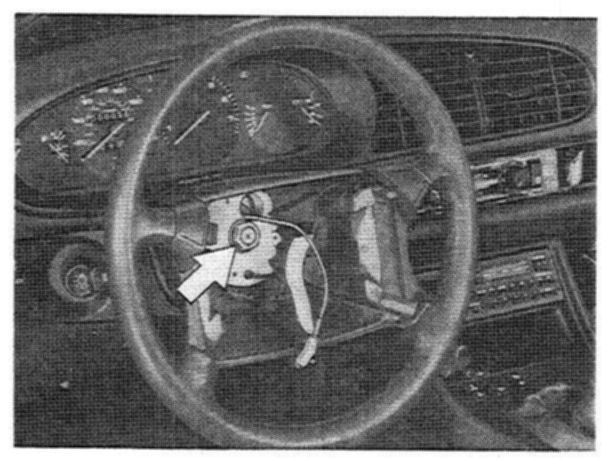

3. Loosen hexagon nut and take off with spring washer.
4. Mark position of steering wheel to steering shaft for re-installation

Installation

1. Put on steering wheel with wheels in straight-ahead position or in in accordance with marking such that the upper steering-wheel spokes are horizontal.

Note The steering wheel must be put on such that the cable of the contact unit is not jammed.

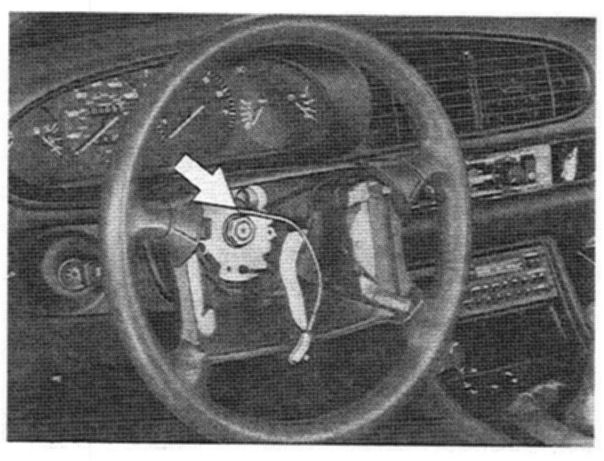

2. Mount hexagon nut with spring washer and tighten to 45 Nm (33.5 ftlb)
3. Install driver airbag unit. Service and Repair
4. Check operation of horn.
