Turbo Oil Supply O-Ring - Replace During Turbo Service
87porsche02Subject:
Turbo Oil Supply O-Ring
Model
944 Turbo
Group
1
Part Identifier
1056
Number
8717
July 31, 1987

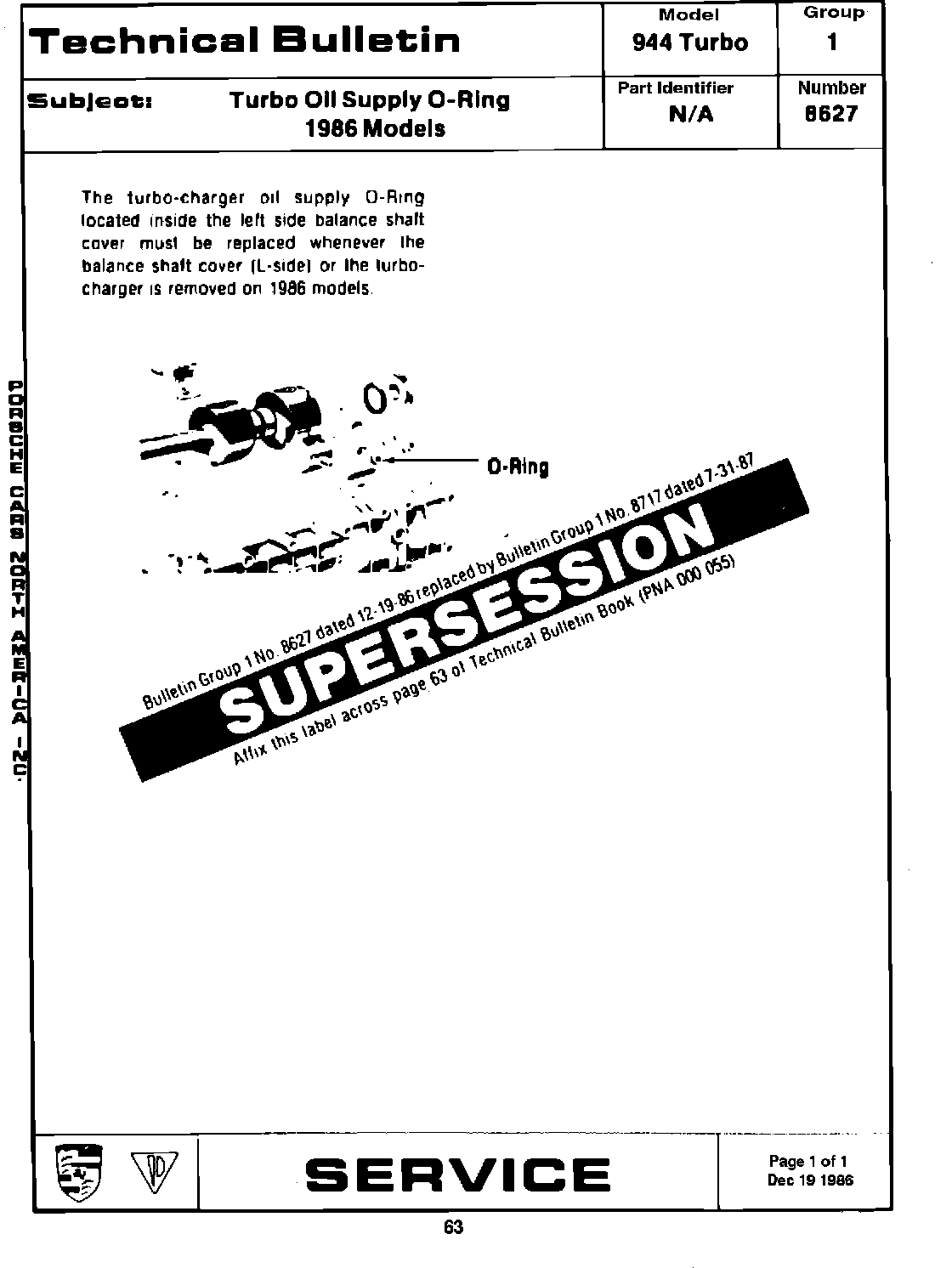

ATTENTION: This Bulletin replaces Bulletin Group 1, Number 8627 dated December 19, 1986.
When replacing turbo chargers on 1986 models where the turbine bearings are worn, the turbo charger outer oil supply side O-Ring, located in the left side balance shaft cover, must also be replaced. Swelling of this O-Ring could seriously impair flow of oil to the turbo charger. It must also be replaced whenever the balance shaft cover is removed for other repairs.
O-Ring Part Number 951 107 241 02.
