Footwell Flaps

1. Remove plug housing.




2. Unscrew cover.

3. Unclip linkage.

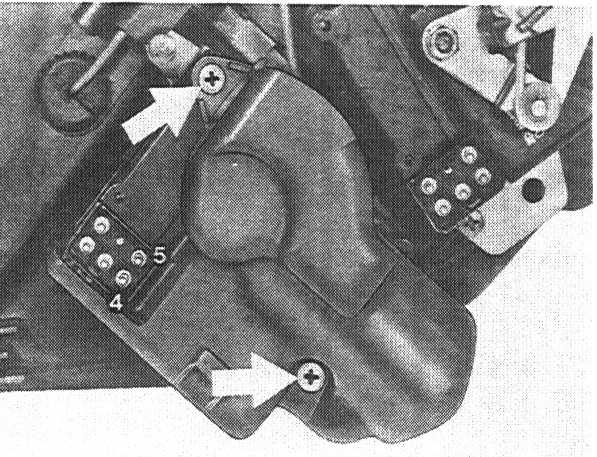

4. Unscrew fastening screws.

Adjusting the Footwell Flaps

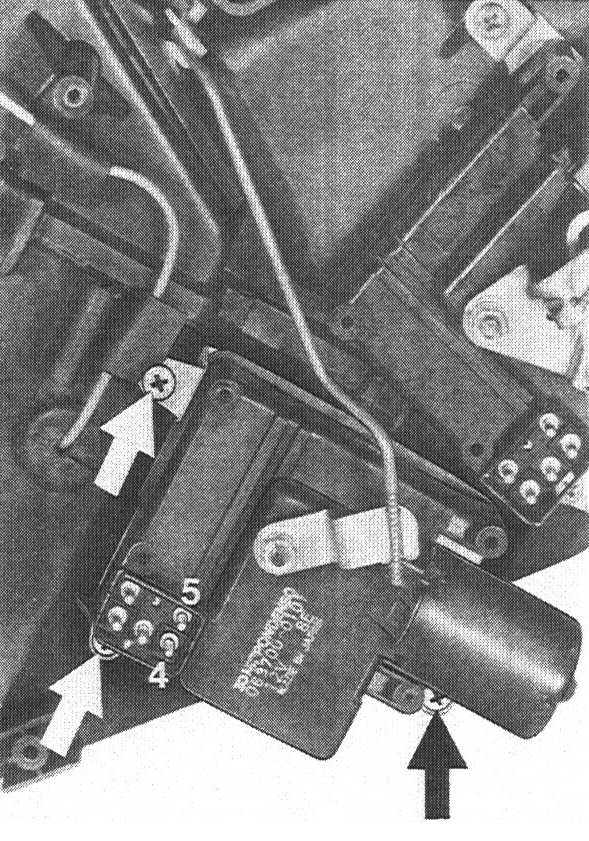

1. Set control motor to final "closed" position. To do this, connect pin 4 with + and pin 5 with - of a 12 voltage source.

2. Close footwell flaps and connect linkage.
