INSTALLING SHAFT SEALS OF BEARING HOUSING

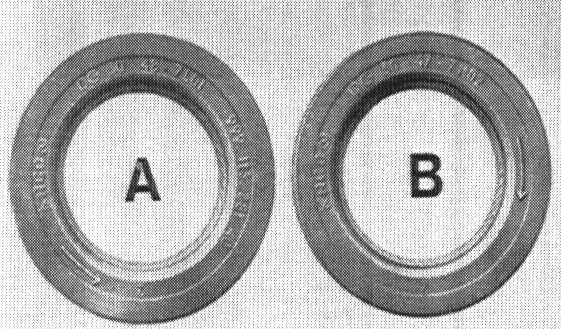

Note: Seals deviate among each other in diameter and on the sealing lip.

Code (arrow) faces in turning direction of balance shafts.









"A" Seal of lower balance shaft
"B" Seal of upper balance shaft

Lubricate sealing lips with oil and at same time install with spacer. Then drive in with Special Tool 9202.
