Oil Pressure Regulator Valve: Service and Repair

REMOVING AND INSTALLING BUSHING FOR OIL PRESSURE RELIEF VALVE

Removing

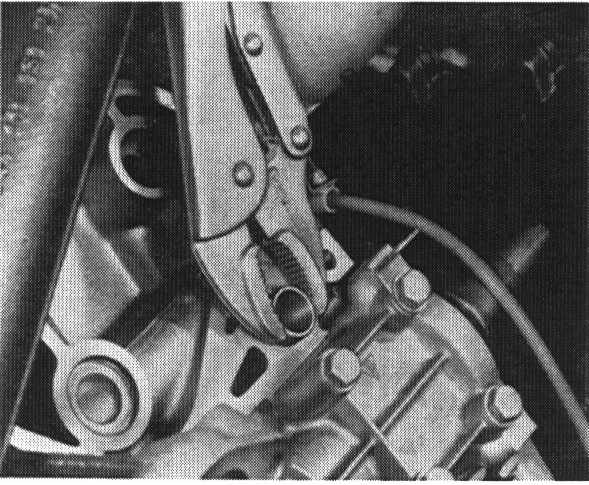

Remove damaged bushing by unscrewing with grip pliers.

Note: Be careful not to damage crankcase.






Installing

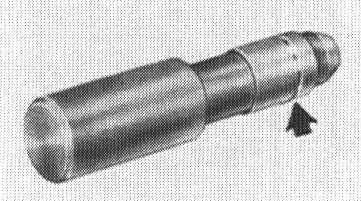

1. Coat bushing at lower scored surface with Loctite No.648 or 638.

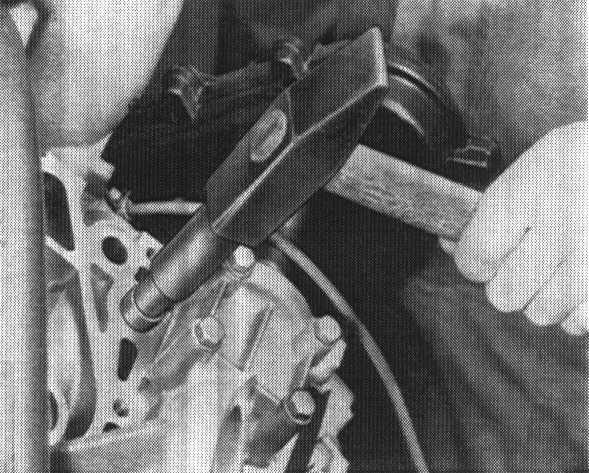

2. Drive in bushing to stop with Special Tool 9215.
