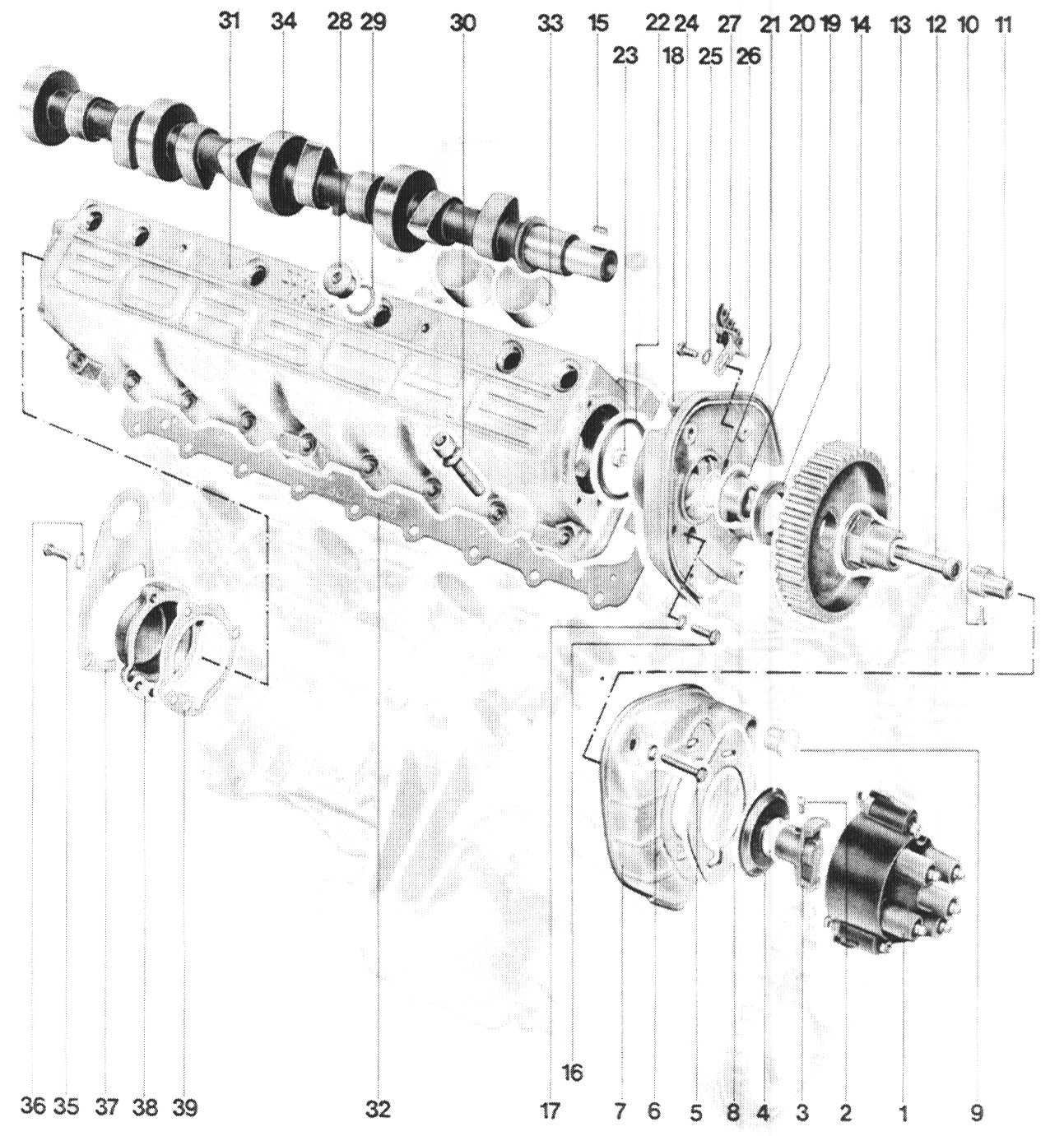

DISASSEMBLING AND ASSEMBLING VALVE DRIVE (CAMSHAFT HOUSING)





No. Description Qty. Notes

1 Distributor cap 1

2 Bolt, M 4 x 6 1 Lock with Loctite 221

3 Distributor rotor 1

4 Dust cap 1 Position correctly

5 Bolt, M 6 x 30 3

6 Washer 6.4 3

7 Console for 1
distributor cap

8 Gasket/self-adhesive 1

9 End cap for sight 1
hole

10 Bolt, M 5 x 10 1 Lock with Loctite 221

11 Connector 1

12 Bolt M 10 x 65 1 Hold dog
Torque:
Hex. socket bolt 45 Nm
Polygon head bolt 65 Nm


13 Dog 1

14 Camshaft sprocket 1 Note position when installing toothed belt

15 Woodruff key, 4 x 4 1

16 Bolt, M 6 x 35 3

17 Washer 3

18 Camshaft bearing 1
cap

19 Shaft seal, 30 x 47 1 Replace, lubricate sealing lip, knock in with Special Tool 9202

20 Spacer 1

21 Gasket (formerly 1 Replace
0-ring in spacer)

22 0-ring 50 x 5 1 Replace, lubricate lightly

23 Seal 1

24 Bolt, M 6 x 12 1

25 Washer 1

26 Ignition cable holder 1

27 Ignition cable holder 1

28 Plug, M 18 x 1.5 6

29 Seal, A 18 x 22 6

30 Bolt with non- 15 Torque: 20 Nm (14 ft lb)
removable washer

31 Camshaft housing 1 Lubricate bearings of camshaft

32 Gasket for 1 Always replace. Note "TOP" when installing
camshaft housing

33 Hydraulic valve 8 Store so that oil Check bore faces up,
tappet do not mix up

34 Camshaft 1

35 Bolt, M 6 x 22 3

36 Washer, B 6 3

37 Transport bracket 1

38 Cover 1

39 Gasket 1 Replace
