Sunroof / Moonroof Cable: Service and Repair

Removing and installing raising cables and elements

1. Remove electrical drives. Service and Repair

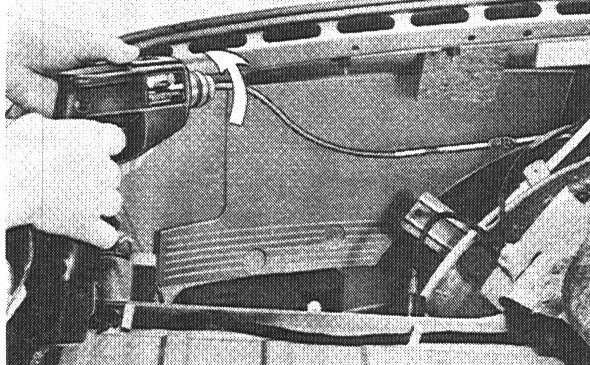

2. Using a drill, turn the raising cable on the square shaft out of the assembly set.

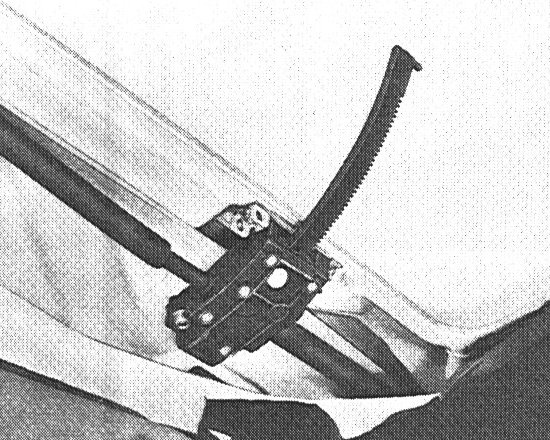

3. Pull element out of the element guide. Grease new element and insert home. Use special grease.

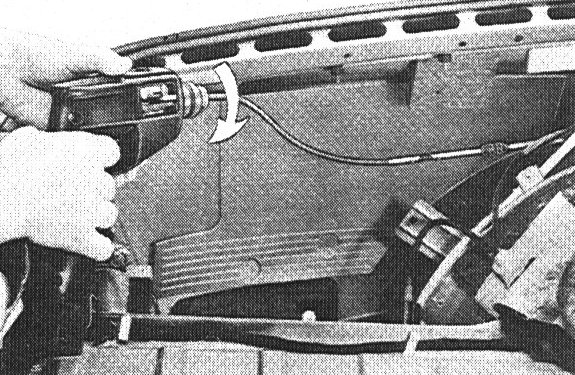

4. Grease raising cable and insert in the assembly set using a left-turning drill. Use special grease. Make sure the elements lie on the element guide.

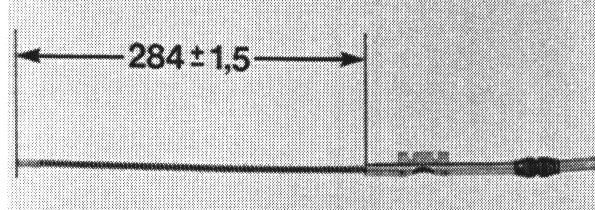

5. Adjust raising cable in accordance with distance data.
