Removing & Installing Radio

Service installing radio since 1985/2 models prepared for radio installation

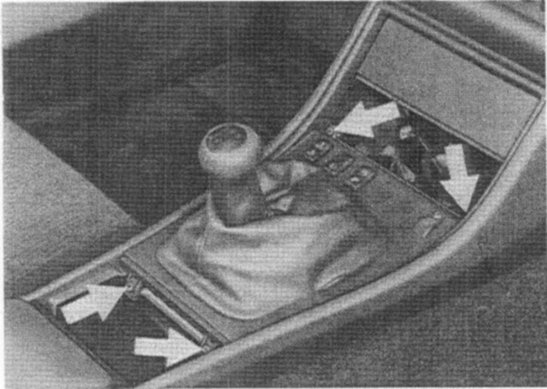

1. Pull out tray holder and ashtray.

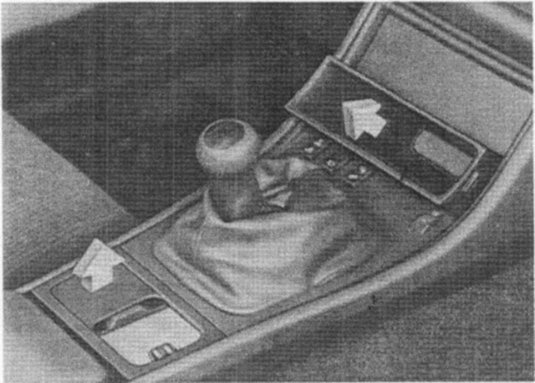

2. Unscrew mounting screws on cover frame of center console.

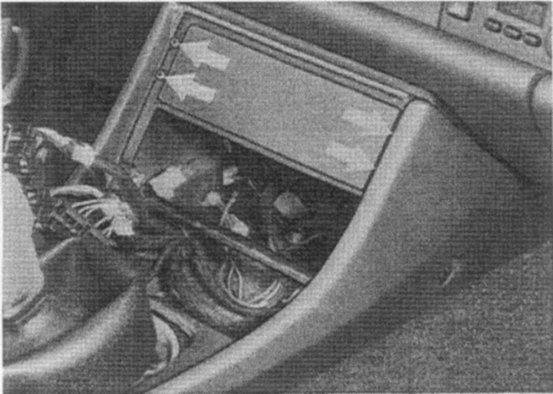

3. Remove mask on radio opening.

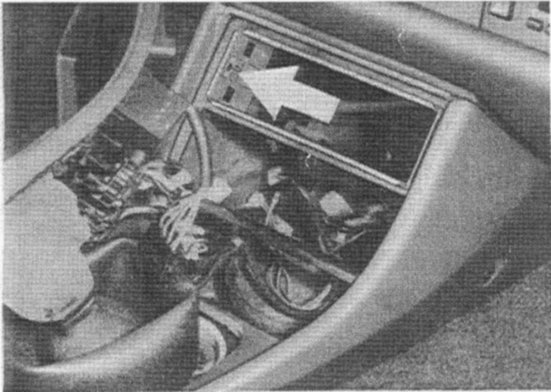

4. Insert holding frame for radio and bend in tabs with a screwdriver.

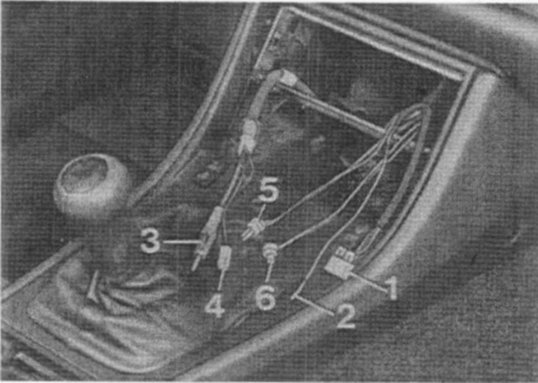

5. Connect radio.

1 = Positive (+) and ground (-) wired via the ignition lock.
2 = Constant positive (+) term. 30.
3 = Antenna connection.
4 = Antenna amplifier connection.
5+6 = Channel left and right.
