Clutch Disc: Testing and Inspection

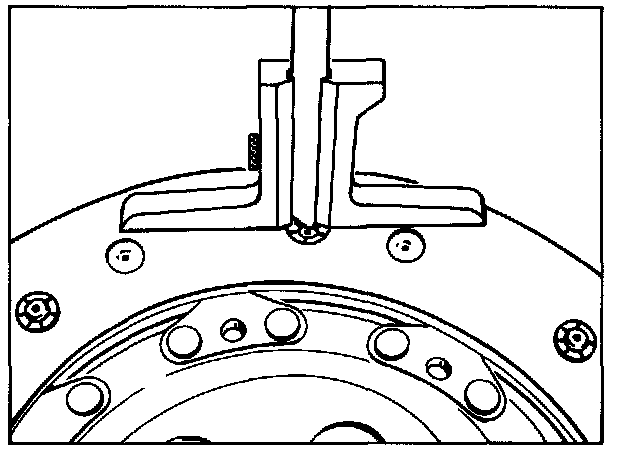

- Using a depth gauge, check thickness of lining to rivet head (dimension X).

NOTE: Measure only on flared rivet head side.

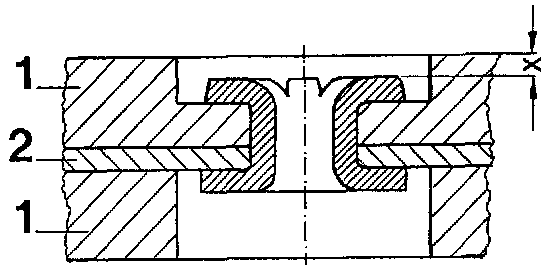

1. Lining
2. Clutch disc-lining spring

- Dimension X is approx. 1.4 mm for new clutch discs.
- If dimension X is down to 0.3 mm, the clutch disc is worn and must be replaced.
- Please note that lining wear is not linear over the entire life of the clutch. Wear decreases considerably as the clutch mileage increases.
