Sliding Roof Wind Deflector - Angle Adjustment

88porsche02

Subject: Adjustable Sliding Roof

Wind Deflector
Model

928 S4
Group

6
Part Identifier

6033
Number

8804
July 29, 1988

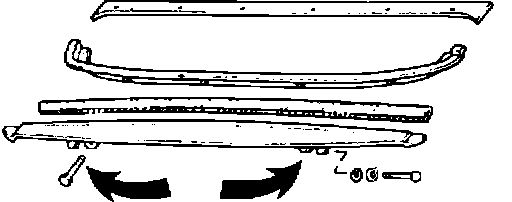

FIGURE 1:

The sliding roof wind deflector angle is adjustable with two screws (Figure 1) to minimize wind noise.

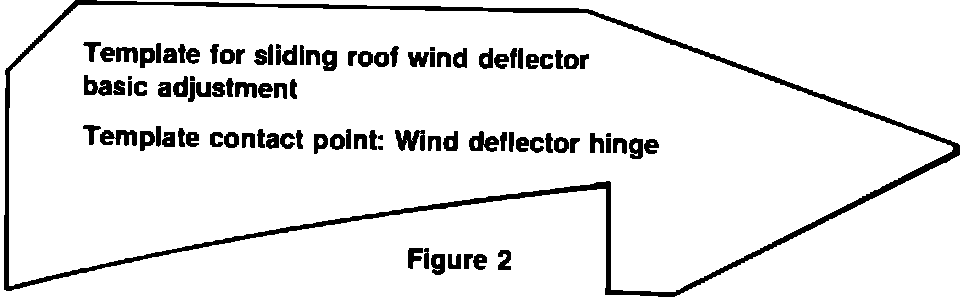

FIGURE 2:

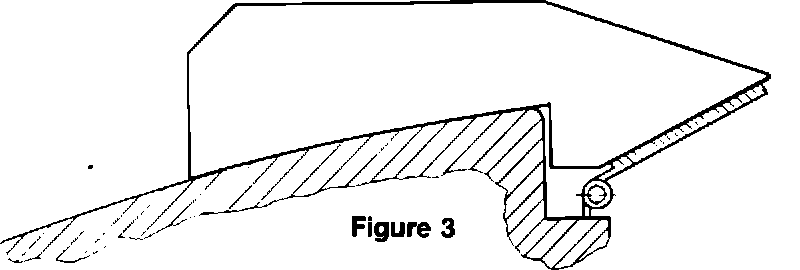

FIGURE 3:

From production date: January 1987 New wind deflector part number:
928 564 023 03

For basic adjustment an angle gauge can be fabricated out of cardboard, wood, or similar material according to attached templates (Figure 2). Align gauge as shown in Figure 3.

Final adjustment can differ from basic adjustment because of body and installation tolerances.
