Porsche
>>
1987
>>
928 S4 V8-4957cc 5.0L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Mirrors
>>
Technical Service Bulletins
>>
Seat and Mirror Control System - Troubleshooting
>>

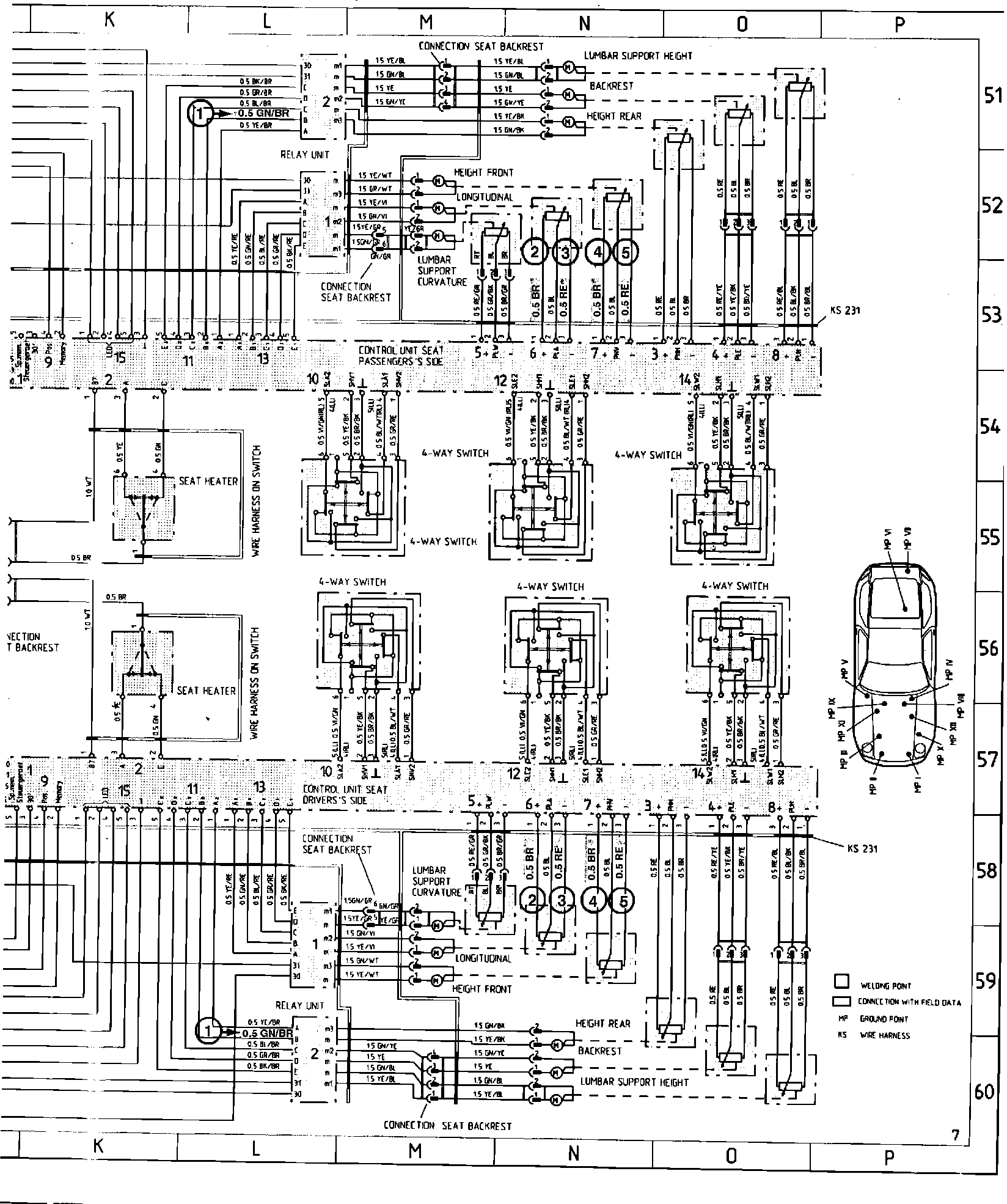

Updated Wiring Diagram
Updated Wiring Diagram
n��S:
Updated Wiring Diagram
Corrections:
1 - 0.5 GN/BR
4 - 0.5 BR
2 - 0.5 BR
5 - 0.5 RE
3 - 0.5 RE
