Shifter M/T: Service and Repair

Disassembly





- Drive out gearshift knob with dismantling lever (see sketch).

Assembly

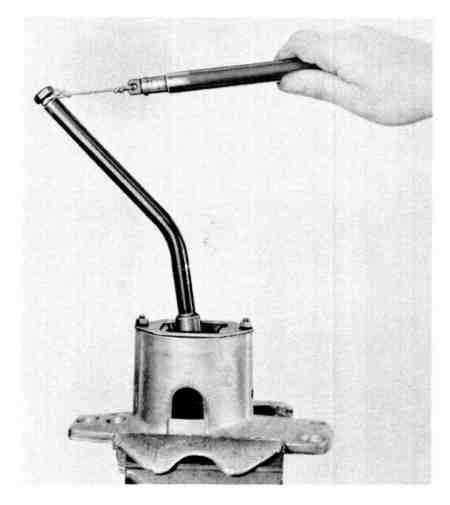

- Clamp gearshift base in a vise. Move selector lever in shifting direction. Pressure must build up from min. 250 g to max. 600 g. Bend spring in gearshift base if necessary.
- Max. pressure transverse to shifting direction is 60 g.
