Pressure Plate: Service and Repair

DISASSEMBLING AND ASSEMBLING

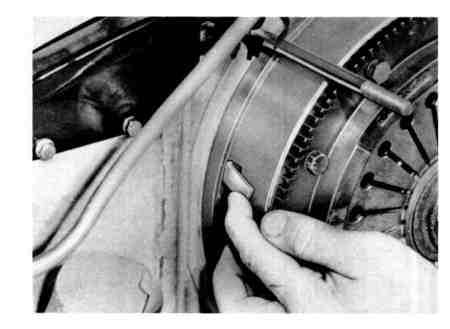

- Three clips can be used to facilitate installation of clutch pressure plate. These clips are mounted on all spare part clutch pressure plates and must be removed after installation. It is recommended to keep these clips on hand for later repair jobs.
- Since the clutch concerned is pulled and the release bearing is designed accordingly. the release bearing must never be subjected to pressure in direction of drive plate.
- Never place removed pressure plate on release bearing. When installing or assembling engine and transmission also make sure that release lever is not exerting force on bearing.
