Throttle Cable/Linkage: Testing and Inspection

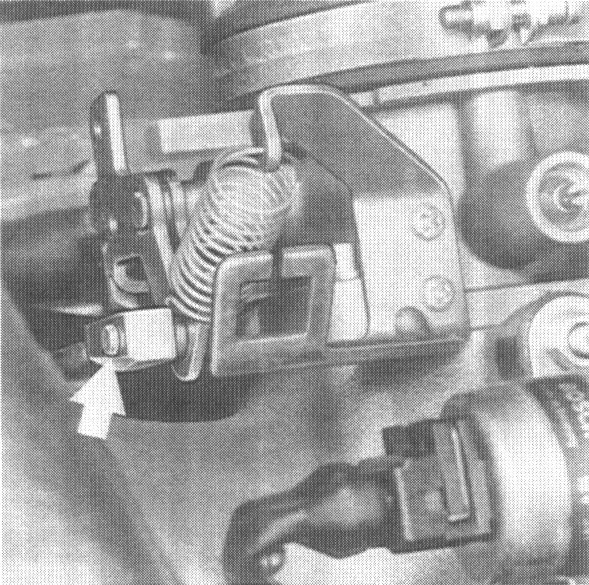

CHECKING MOVEMENT OF THROTTLE OPERATING LINKAGE




Check whether operating linkage for throttle moves easily enough, Iuhricating joints with grease if necessary.




Never lubricate upper bearing on operating linkage regardless of circumstances, since a special sleeve is installed.
