Throttle Body: Adjustments
ADJUSTING FULL-LOAD SETTING OF THROTTLE VALVE

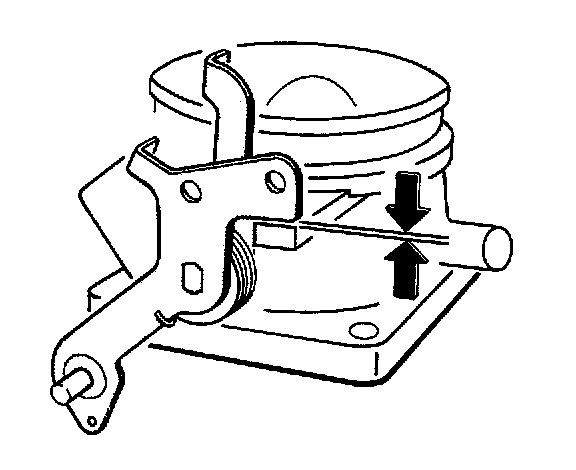

The actuating linkage must be adjusted such that when the accelerator pedal is fully depressed there is at least 1 mm clearance at the throttle-valve lever.
The actuating linkage must be adjusted such that when the accelerator pedal is fully depressed there is at least 1 mm clearance at the throttle-valve lever.
