Air injection - Pipe Clamp On Additional Air Pump
87porsche03Subject: Fuel Return Pipe Clamp
On Additional Air Pump
Model
911 Turbo
Group
2
Part Identifier
2665
Number
8707
June 3, 1987

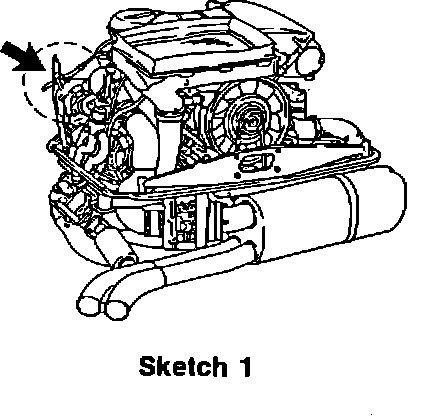

When working on the additional air injection pump, the position of the fuel return pipe should be checked. (Sketch 1)

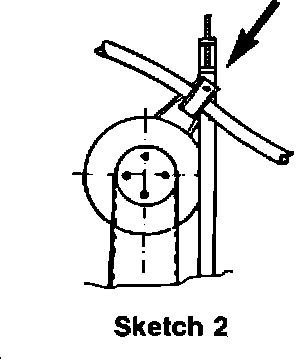

The clamp for the pipe guide must face toward the center of the pump pulley. (Sketch 2)

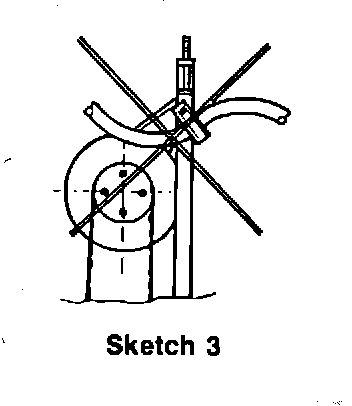

Otherwise, there could be contact with the pump pulley. (Sketch 3)
