Heater Fans - Additional Units Use 10 Amp Fuses
87porsche02Subject: Fuses for Additional Heater Fans
Model
911 Carrera 911 Turbo
Group
8
Part Identifier
8054
Number
8704
August 12, 1987

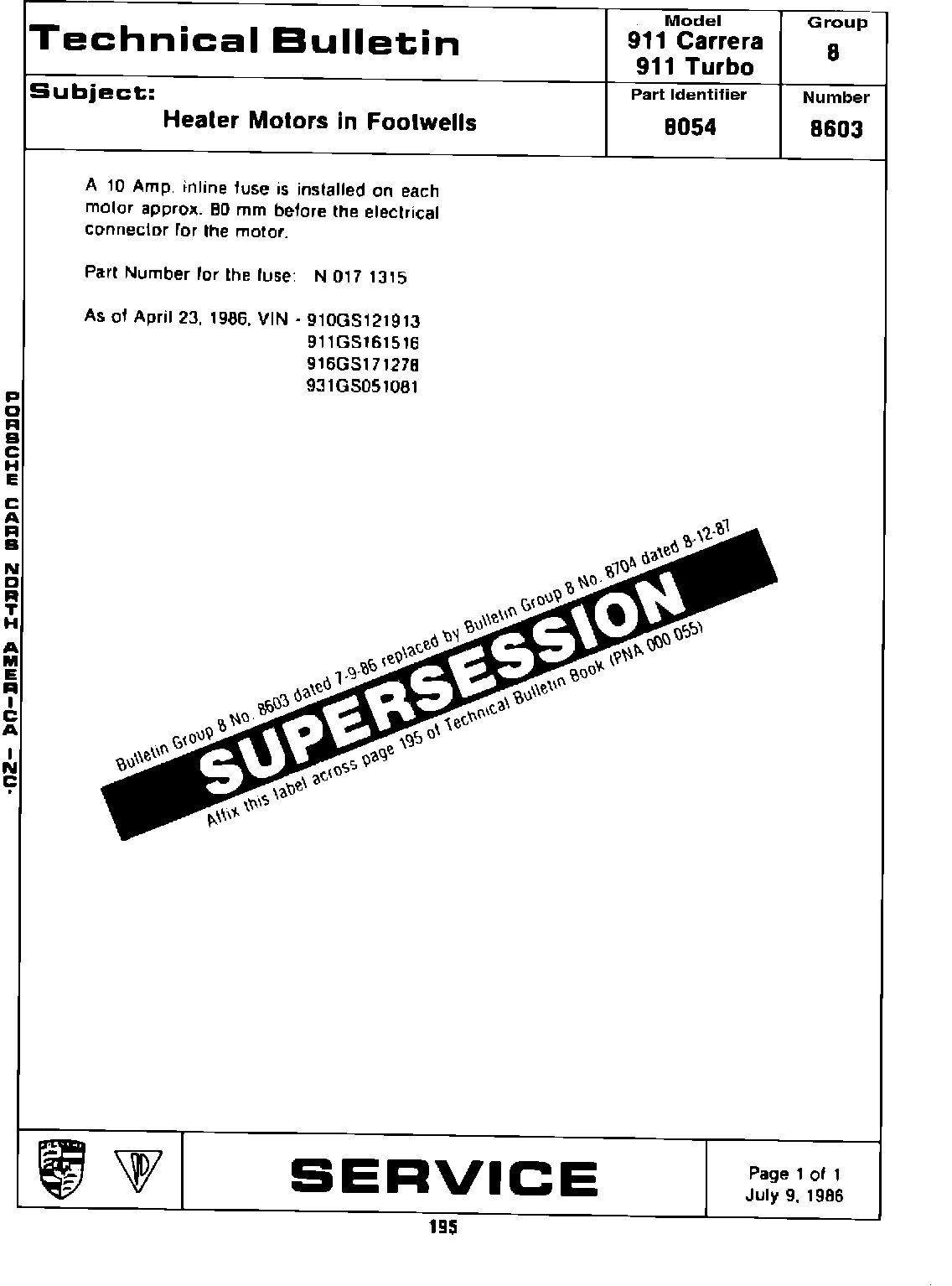

ATTENTION: This bulletin replaces Bulletin Group 8, Number 8603, dated July 9, 1986.
The additional heater fans each have a 10 amp in-line fuse located approximately 80 mm before the fan wiring connectors behind the side footwell trim panels left and right.
From production date: April 23, 1986
VIN 91 0GS 12 1913
91 1GS 16 1516 91 6GS 17 1217 93 1GS 05 1081
Fuse part number: N 017 13 15

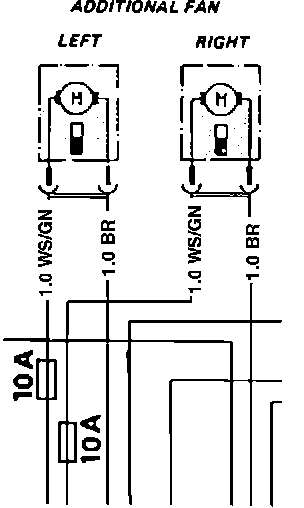

The fuses are not shown in the wiring diagrams. Update the 911 Carrera and 911 Turbo 1987 Wiring Diagrams Sheet 4 Field D/E 24 according to the diagram on this page.
