Home
>>
Porsche
>>
1987
>>
911 Carrera Targa F6-3164cc 3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Fluid Diagrams
>>
Engine Lubrication
>>

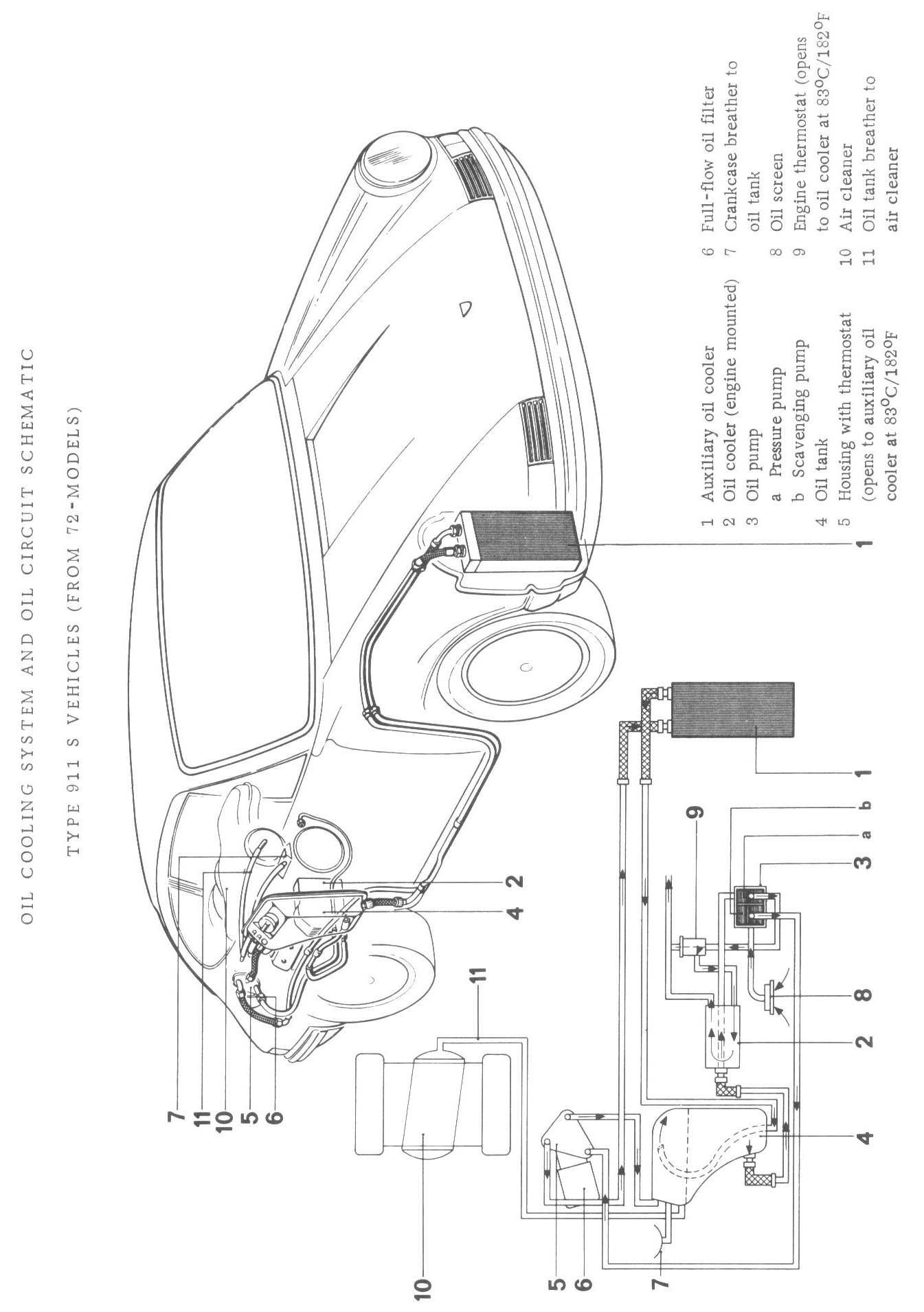

Oil Cooling System and Oil Circuit Schematic
Oil Cooling System and Oil Circuit Schematic
