Shift Linkage: Adjustments

ADJUSTING SHIFT LINKAGE

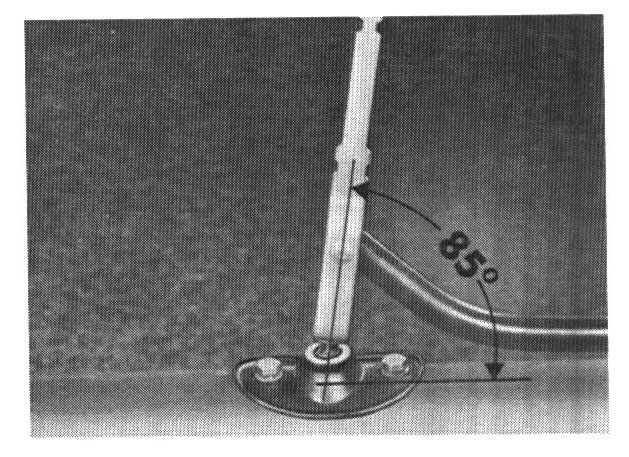

1. Adjust shift lever to an inclination of 85° by moving the shift lever console. Shift lever should be in neutral for this adjustment.

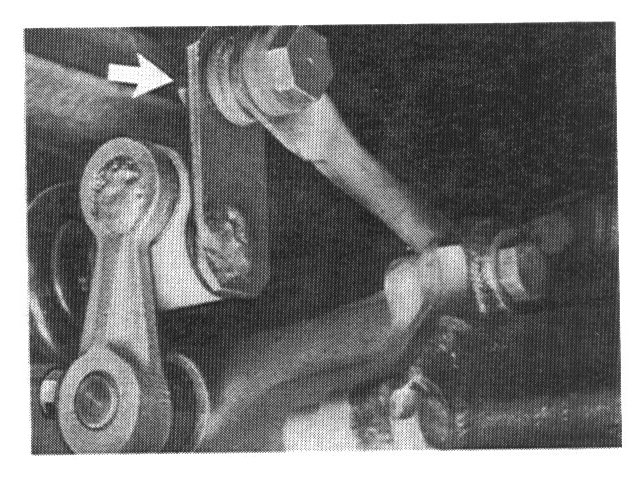

2. Shift lever in neutral. In this position a spring will hold the lateral selector shaft I in the center shift plane (3rd and 4th gear). When shift was adjusted correctly, shift lever will not have lateral inclination. Adjustments are made on intermediate shift lever for joint rod.
