Instrument Cluster / Carrier: Service and Repair

REMOVING AND INSTALLING INSTRUMENT PANEL/INSTRUMENTS

1. Disconnect battery.





2. Place hand underneath instrument panel trim and press tachometer or combination instrument out of instrument panel.

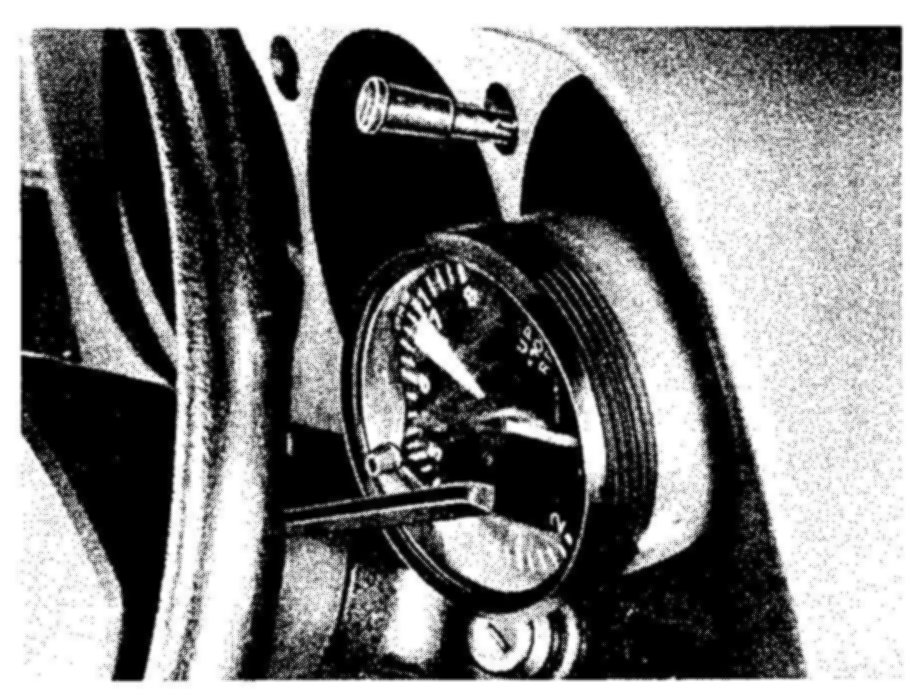

3. To remove the speedometer it is better to first remove both other instruments. Then the speedometer can also be pressed out of its holder through both openings. If necessary apply an appropriate tool (angled flat iron bar, large socket wrench etc.), which is inserted behind the speedometer housing and used to press out the instrument.


Note: Do not apply pressure to glass when installing.
