Installing Drive Gears

Installing Drive Gear of Upper Balance Shaft

Woodruff Key:

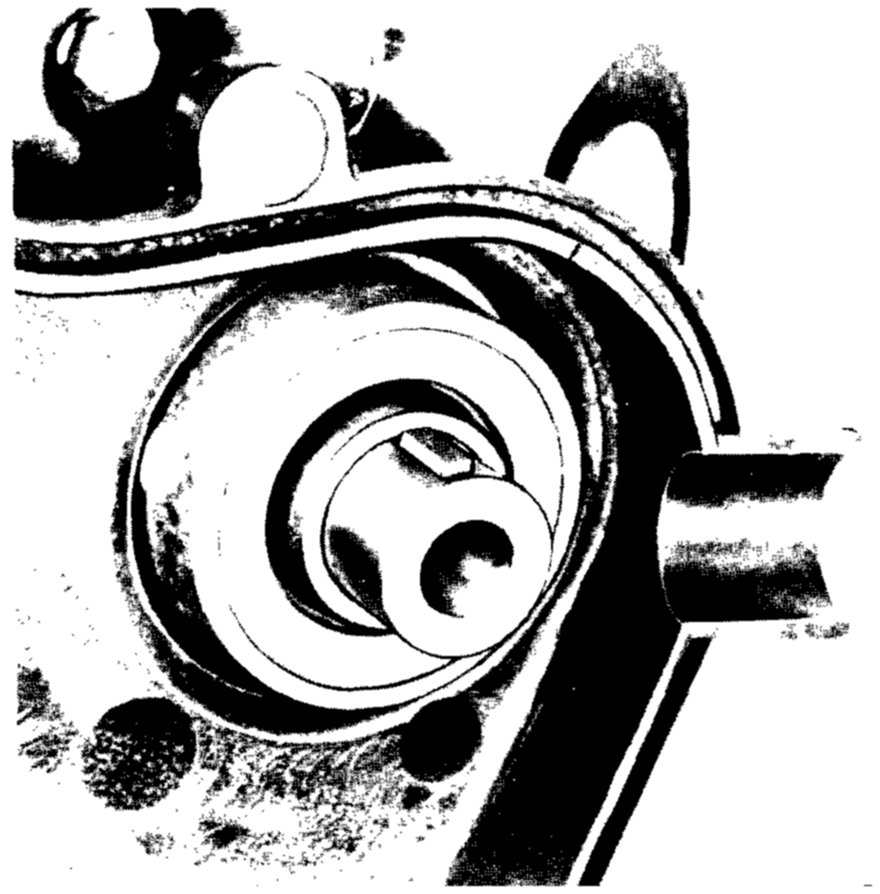

1. Woodruff key groove of balance shaft faces up. Insert woodruff key. Apply thin coat of Optimoly HT on bearing surface for drive gear.

Drive Gear:

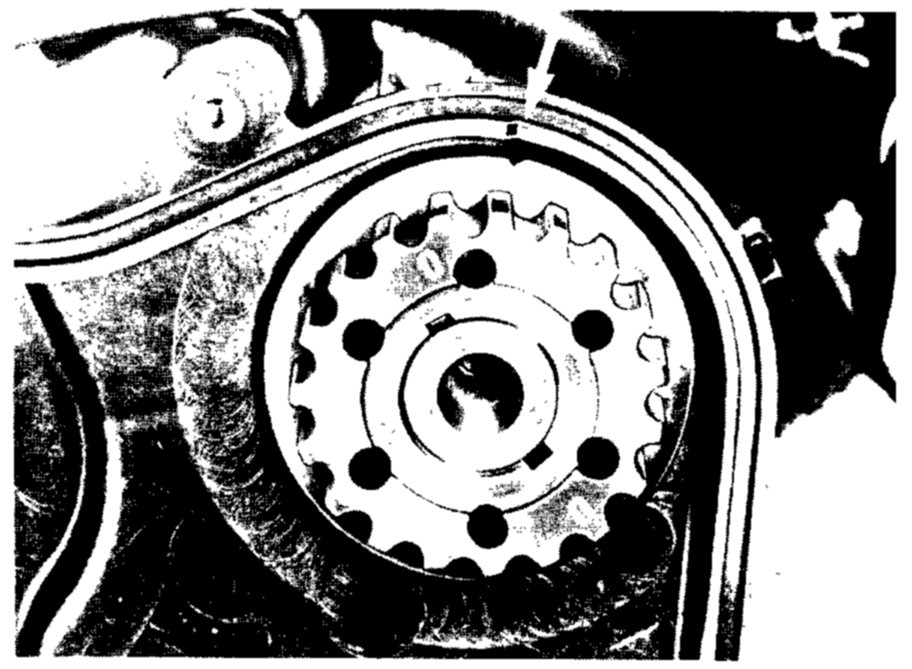

2. Push drive gear with groove code "0" on woodruff key.

Installing Collar:

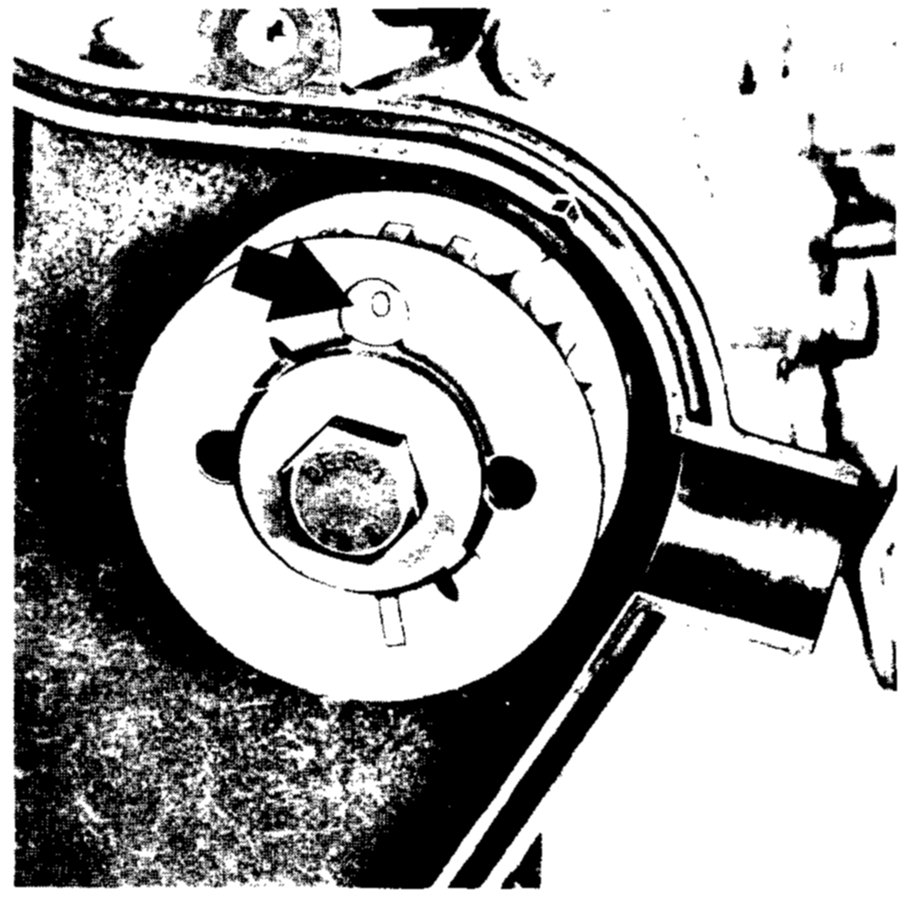

3. Install collar that its locating tab protrudes into unmarked groove of drive gear. Code "0" can be seen in large bore of collar. Install bolt and washer. Coat threads of bolt with Loctite 574.
