Home
>>
Porsche
>>
1984
>>
944 L4-2479cc 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Heating and Air Conditioning
>>
System Diagram
>>
Evaporator Unit
Evaporator Unit

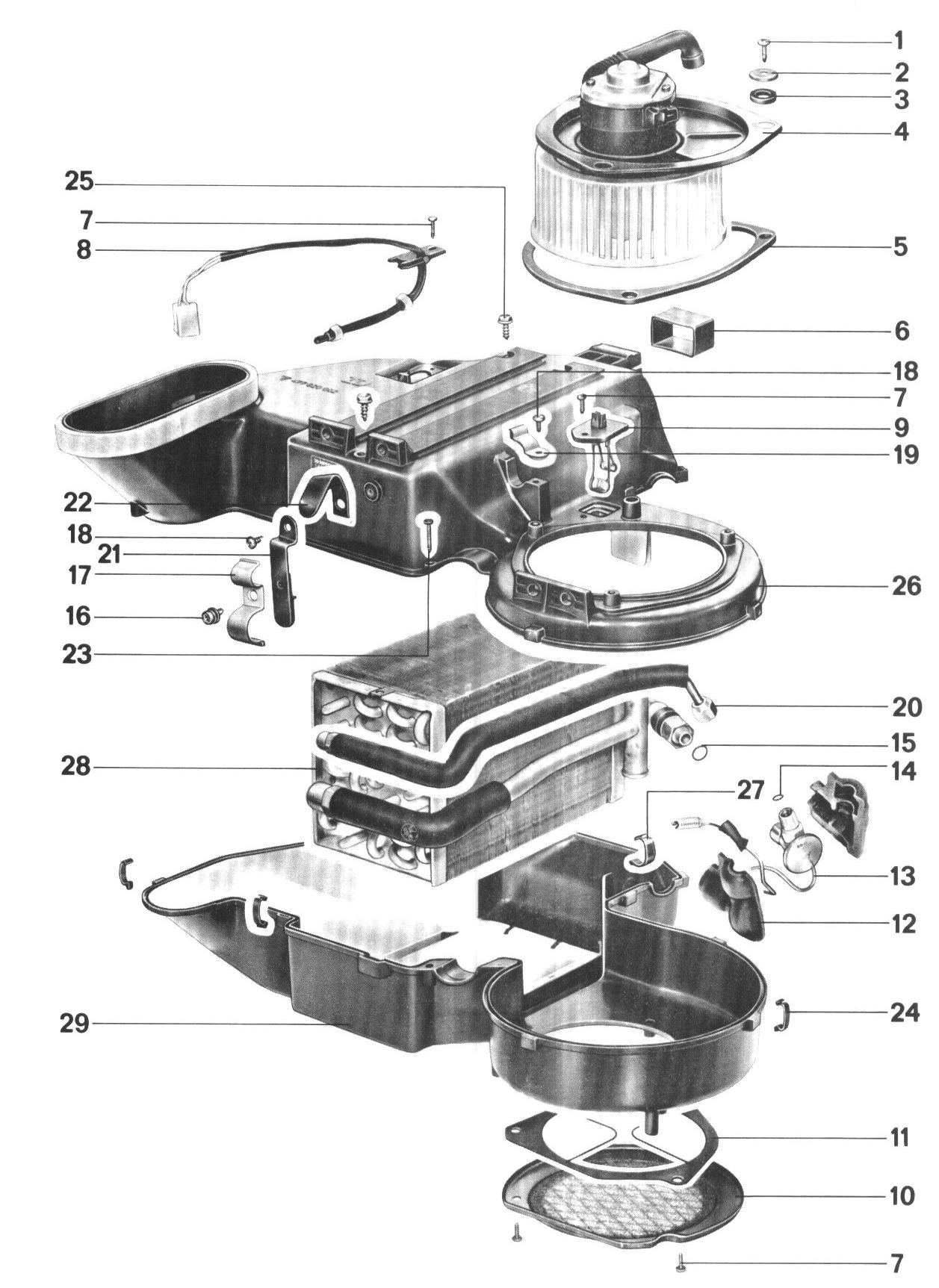

Evaporator Unit Housing

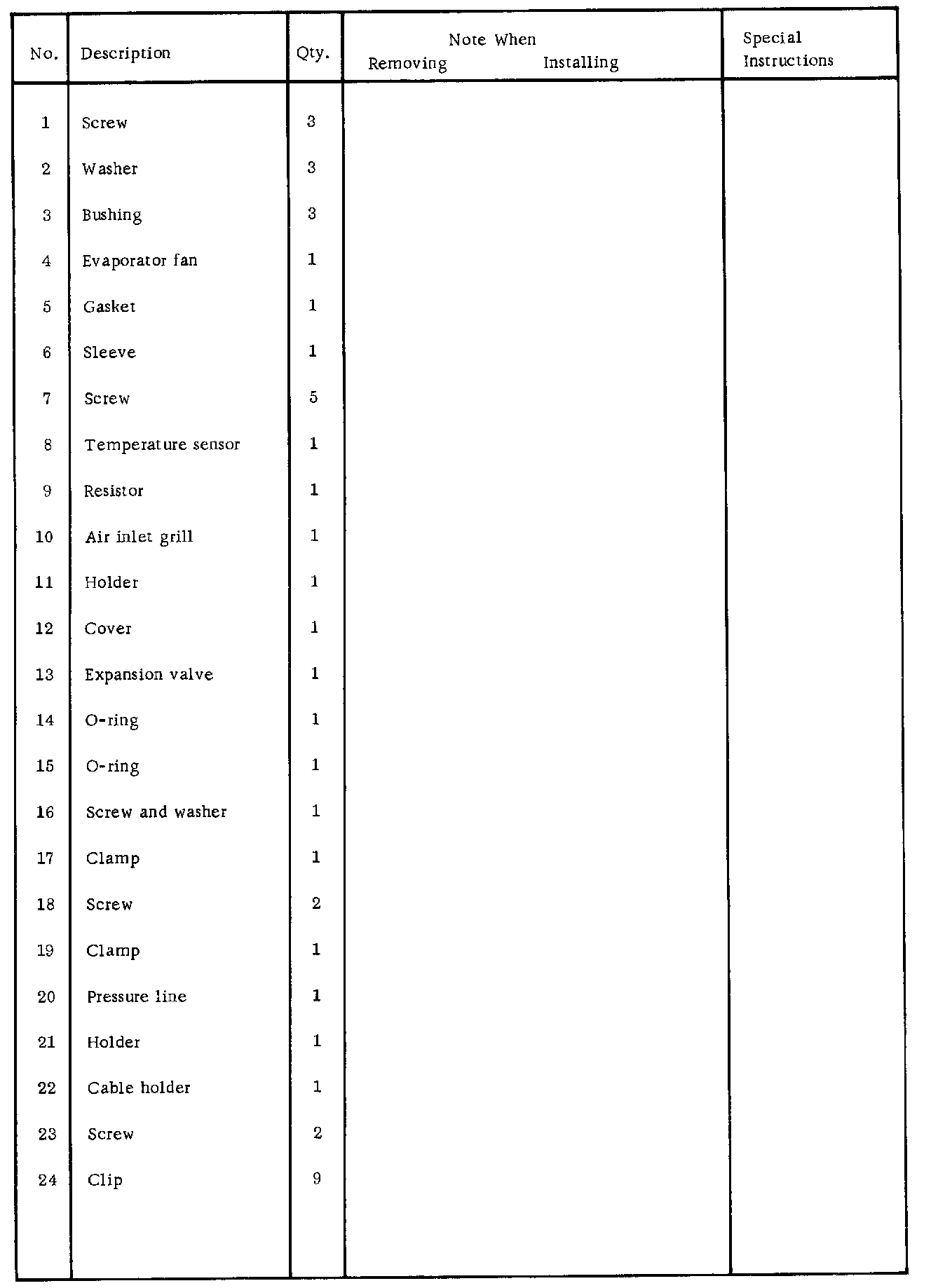

Component Index
