Removing/Installing Sun Roof Microswitch In Roof Opening

REMOVING AND INSTALLING SUN ROOF MICROSWITCH IN ROOF OPENING

Removing




1. Unlock and remove lifting roof lid. Disengage operating flap in lifting roof mount with a body spatula.




2. Unscrew lifting roof mount and press out of wind deflector.

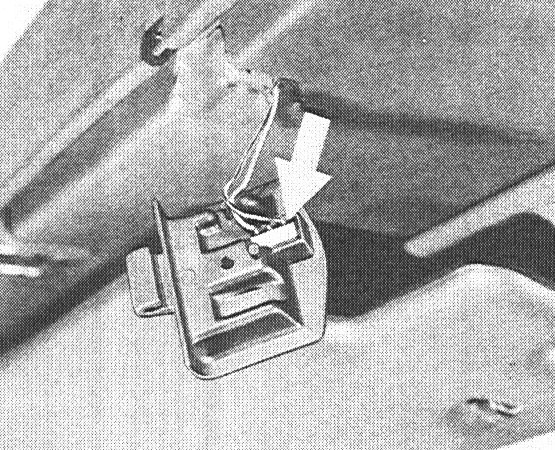

3. Take microswitch out of lifting roof mount and unsolder wires.


Installing

Note:
- Be careful not to pinch wires when tightening screws.
- The operating lever on the microswitch must not clamp.
