Oil Pressure Lines

NOTE: Because of the ability to interchange Porsche transmissions, it is possible to find an oil pump equipped transmission in a later model.





Removal

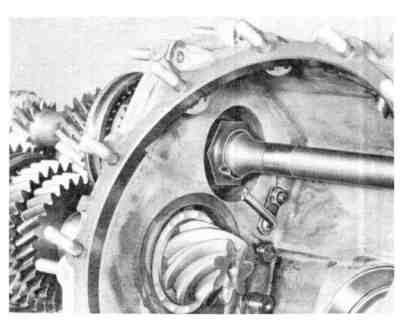

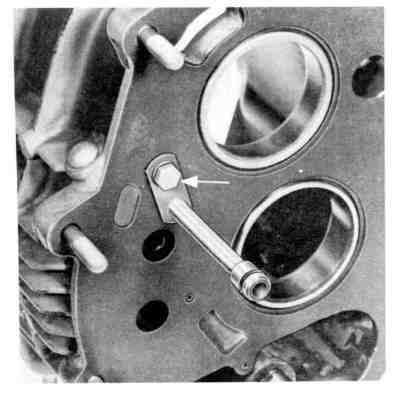

- Remove pressure line retaining bolt from gear housing and pull pressure line out.

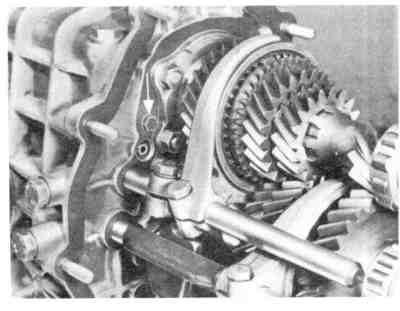

- Remove retaining bolt of pressure line (spray nozzle for ring and pinion gears) from differential housing and pull the pressure line out.

Installation
- Install new 0-rings and oil lightly.
^ Tighten retaining bolts to: 8-9 Nm (5.9-6.6 ft lb)
