Oil Pump - Only Units With Fixed Oil Screen Available
85porsche01Subject:
Oil Pump
Model
911,
911 Turbo
Group
1
Part Identifier
1720
Number
8510
June 17, 1985
Oil pumps, Part No. 911.107.008.01 and 930.107.008.02 are no longer available as spare parts. These pumps were used as of M.Y. 1976.
Effective immediately, only oil pumps with a permanent fixed oil screen will be available.
Part #911.107.008.05 - 911, Turbo 3.0 ltr. Part #911.107.008.04 - Turbo 3.3 ltr.
The new version oil pumps were installed during production as of March 1983, engine #64D3717 and can be installed in the following engines:
911s - as of engine #646 0672, 911/82 646 0458, 911 /84
911 turbo, 3.0 ltr - as of engine #686 0021, 930/51
NOTE: Oil pumps for engines before M.Y. 1976 are still available under Part #901.107.002.06.
With the installation of the new oil pump in an older engine, the following additional parts must be changed:
- Discard loose oil screen

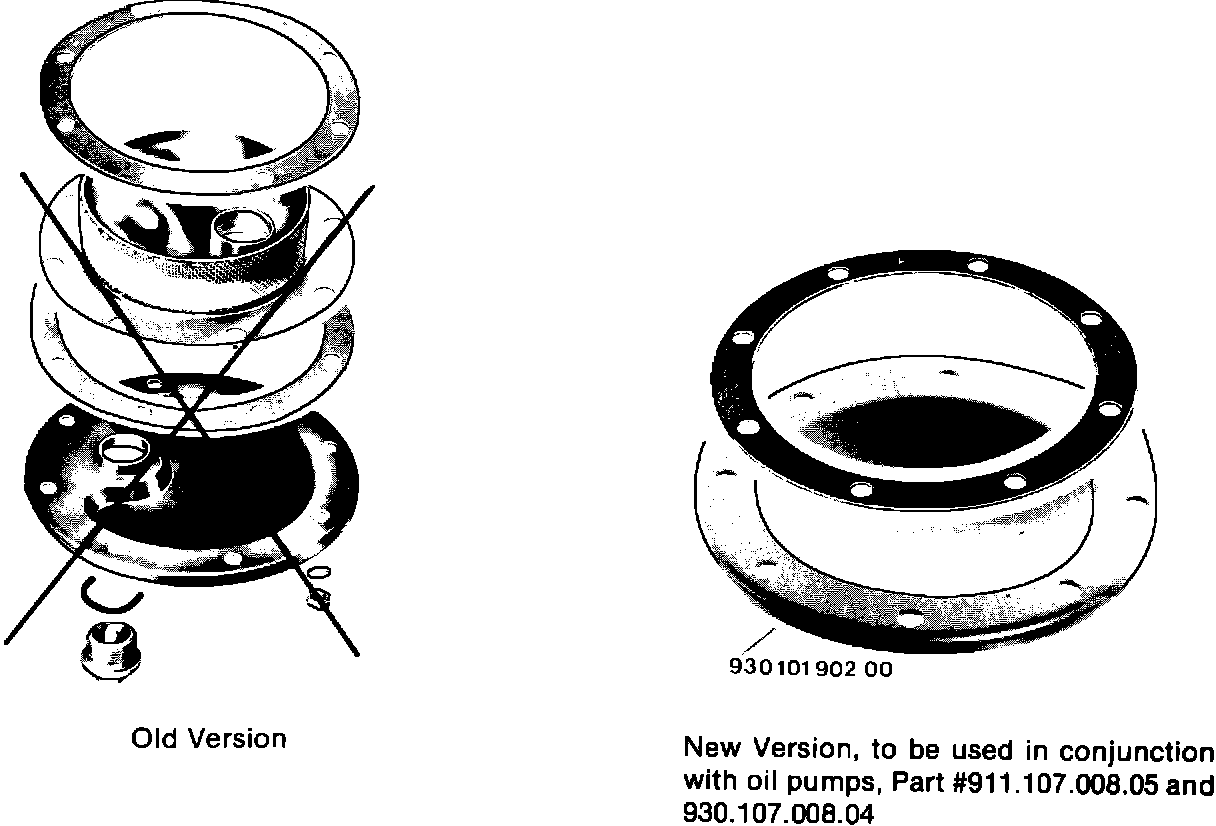

- Old cover, Part #901.101.386.00, with drain plug must be replaced with new cover, Part #930.101.902.00. The new cover does not have a drain plug, but does have a round recessed bowl.
The cover of this version has to be removed when changing oil.
