Fuel Accumulator: Service and Repair

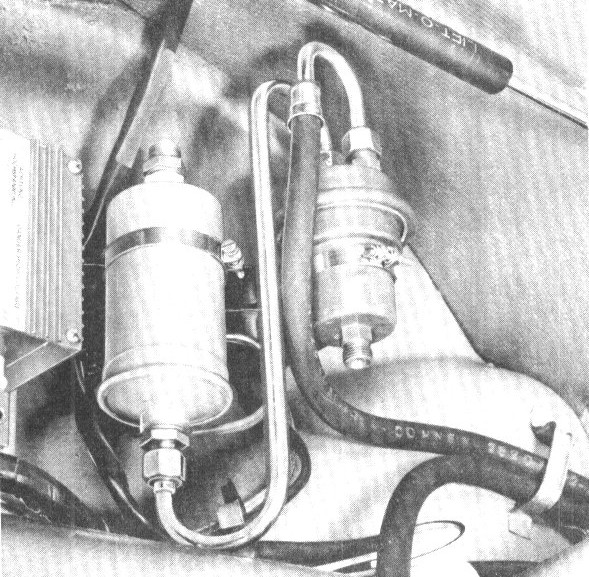

REMOVING AND INSTALLING FUEL PRESSURE ACCUMULATOR




1. Unscrew coupling nut from fuel supply line at the fuel pressure accumulator.

Note: Use rages to prevent fuel spillage.

2. Remove attaching clamp.

3. Loosen hose clamp, withdraw fuel pressure accumulator and plug fuel hose with an appropriate plug.

4. Check all connections for leaks.

5. Bleed fuel line system. Service and Repair
