Home
>>
Pontiac
>>
2010
>>
Vibe AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transfer Case Clutch
Transfer Case Clutch

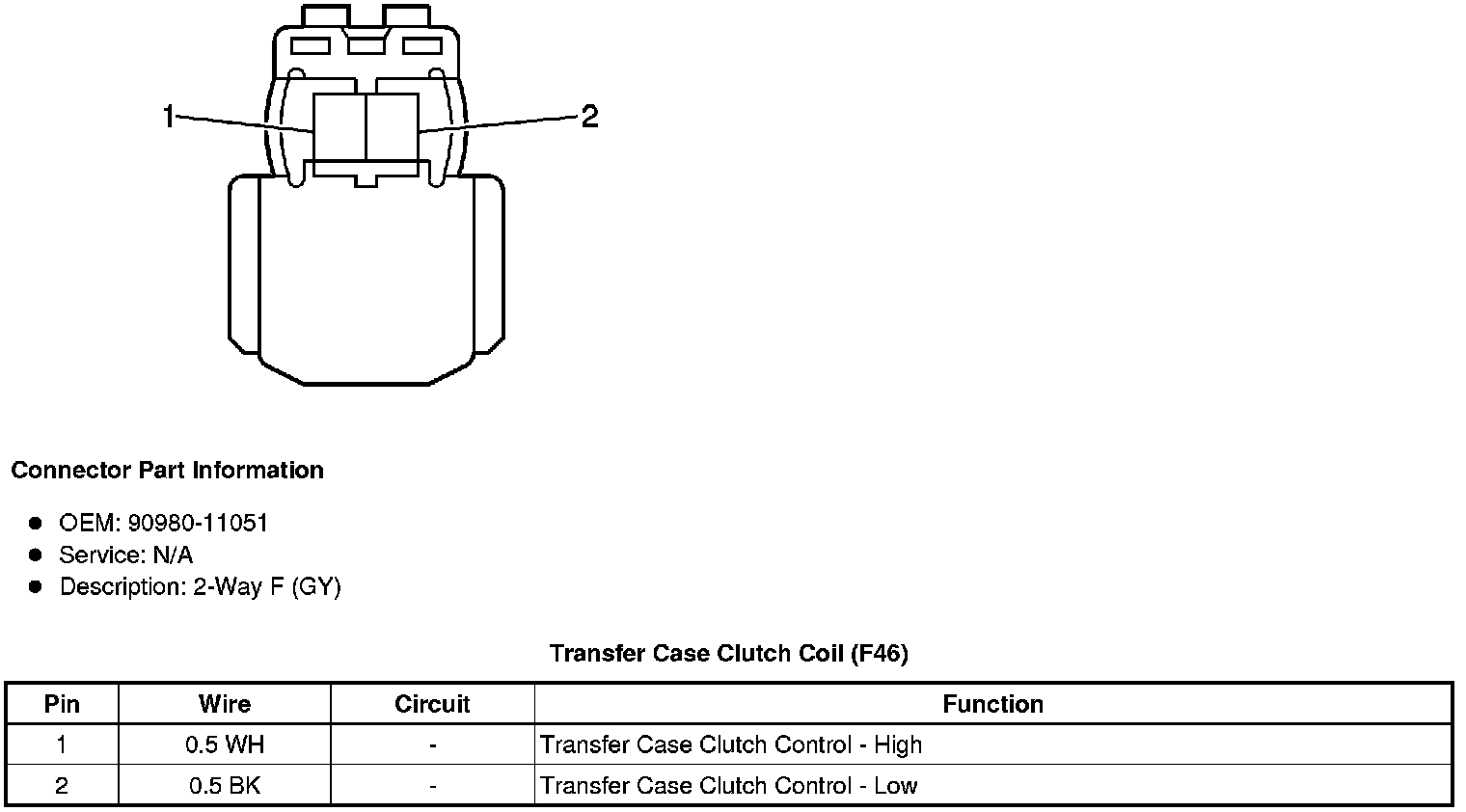

Component Connector End Views
Transfer Case Clutch
Coil (F46)
